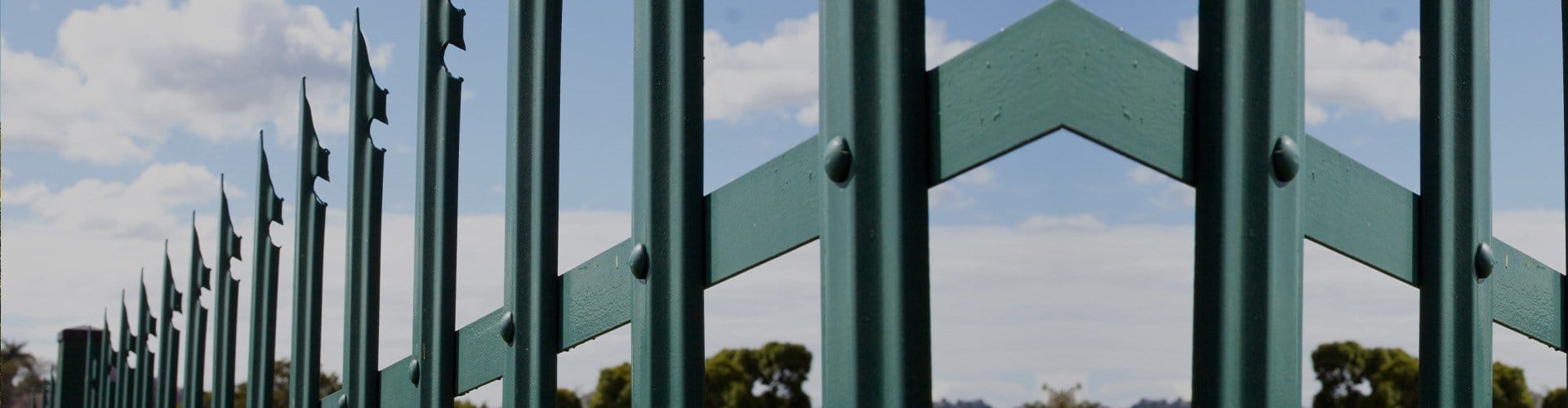

Metal Palisade Fence

Palisade Fence

Durable palisade fence for high-security perimeter, industrial protection and anti-climb barrier.

Palisade Fence

Palisade Fence is a high-performance anti-climb security fencing system with heavy-duty rigid pales design, delivering great stability, anti-vandal performance and high-level protection. Made of quality galvanized steel with strong welded structure, its sharpened pale design enhances anti-climb capacity and prevents deformation.

It features hot-dip galvanized, PVC coated or galvanized + PVC coated finishes for excellent corrosion, rust and weather resistance, suitable for harsh industrial and outdoor use. Modular panel design enables fast, welding-free installation, saving labor and time.

Durable, secure and cost-effective, it is widely used in industrial parks, power stations, commercial areas, airports, factories and high-security sites for various perimeter protection applications.

Product Details– BENDIN



What is a Palisade Fence?

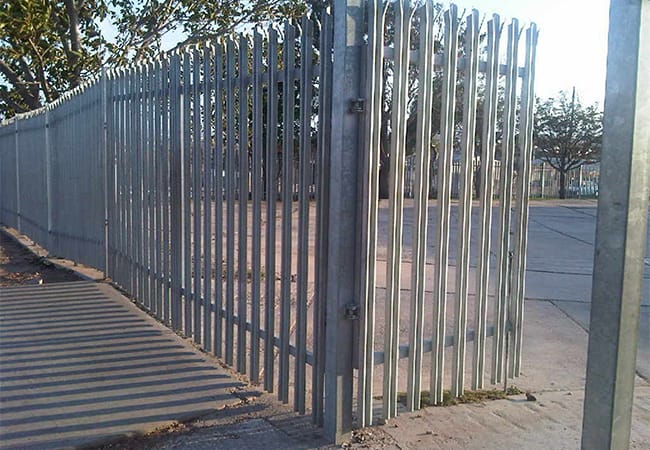

Palisade Fence, also widely known as Security Palisade Fence or Anti-Climb Pale Fence, is a high-security, vandal-resistant, and robust perimeter protection system characterized by its heavy-duty galvanized steel pales and rigid welded structure, offering an optimal blend of anti-climb performance, site security, and long-term durability.

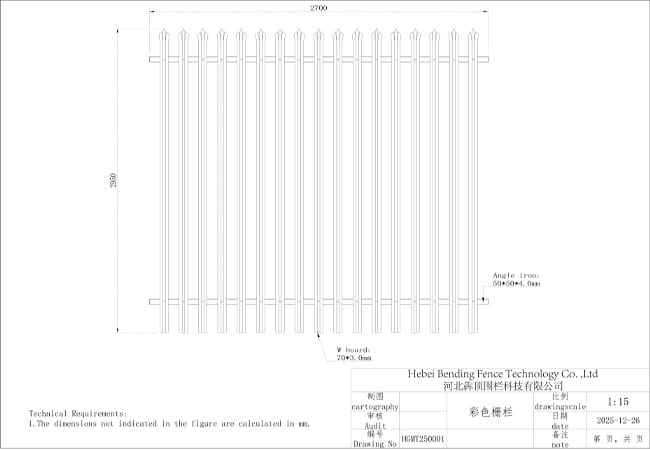

Pale & Angle Iron Specifications



ComponentThickness (mm)Width (mm)Material / Notes

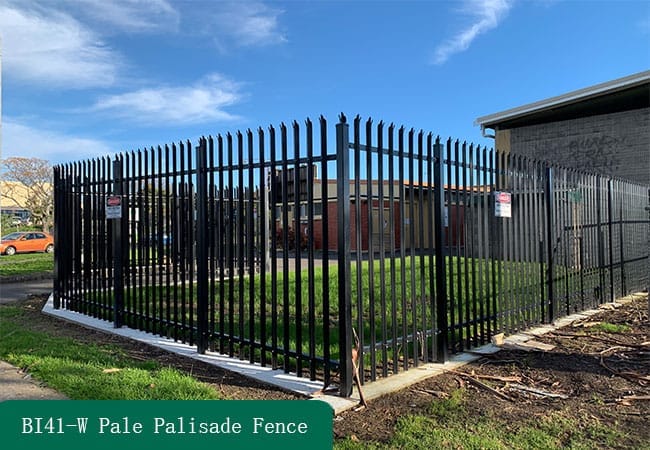

W Pale2.0 – 3.060 / 70 / 80W‑profile (wave shape for extra rigidity), galvanized steel

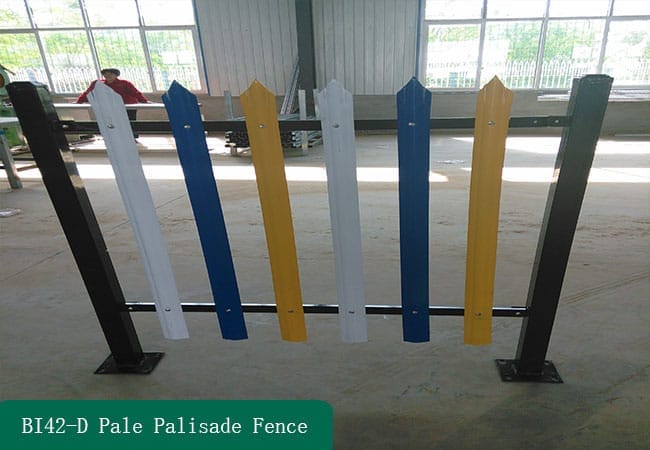

D Pale2.0 – 3.070D‑profile (smooth face, sharp edges), galvanized steel
Angle Iron2.0 – 3.055Hot‑dip galvanized angle steel, used for horizontal rails

Special Accessories

  • H Beam Post
  • Square Post
  • Square Post

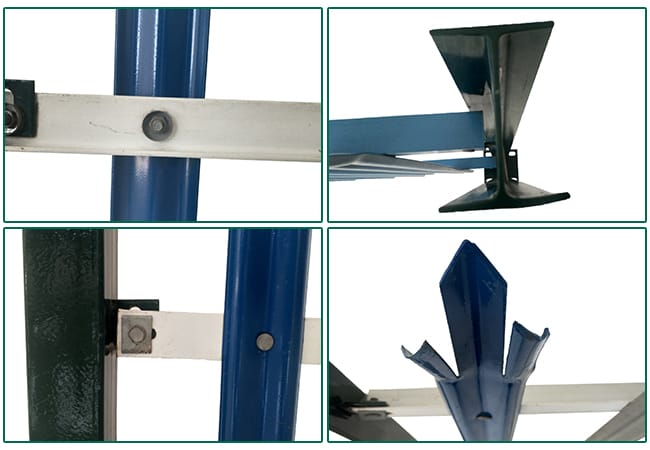

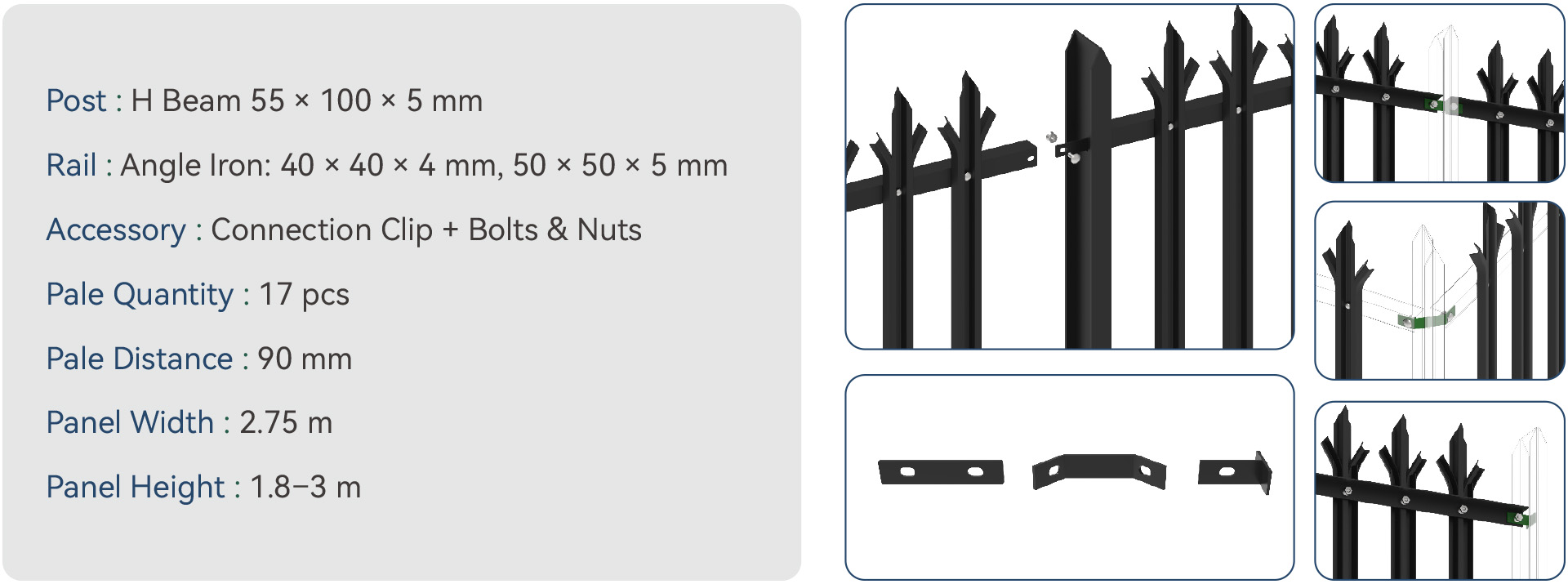

H Beam Post + Angle Iron Rail + Connection Clip
H Beam Post + Angle Iron Rail + Connection Clip

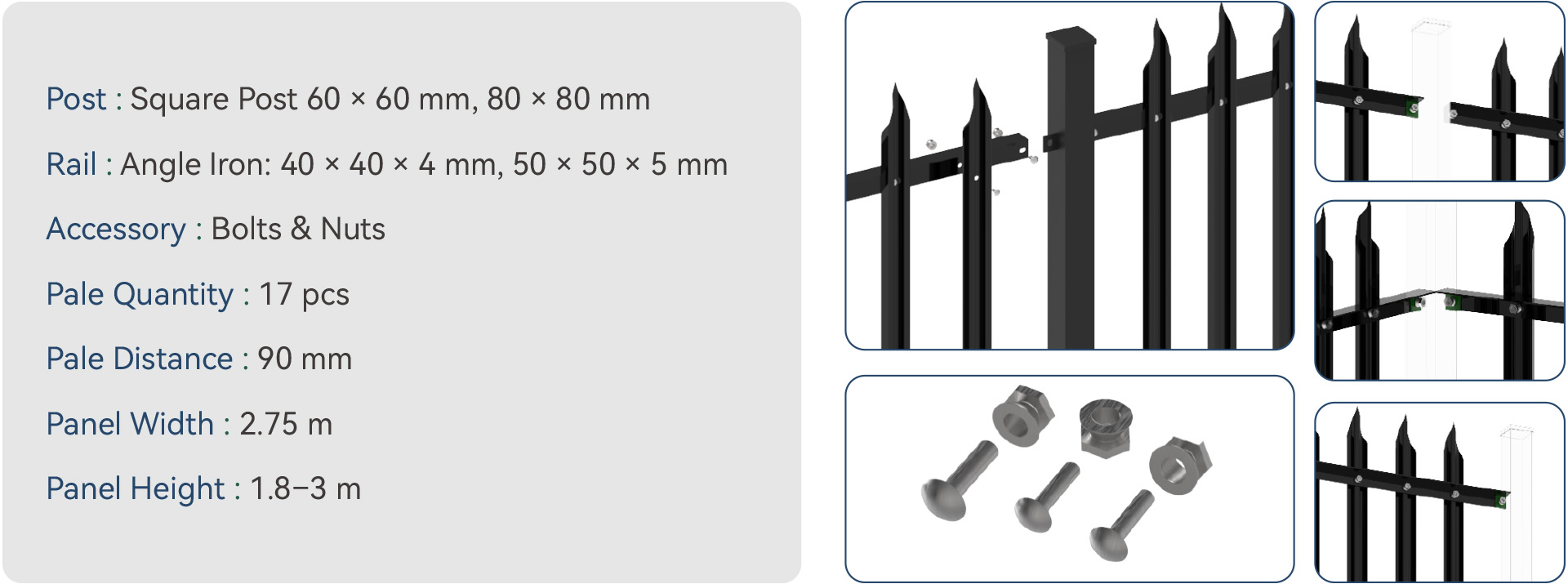

Square Post + Angle Iron Rail + Welded Lug
Square Post + Angle Iron Rail + Welded Lug

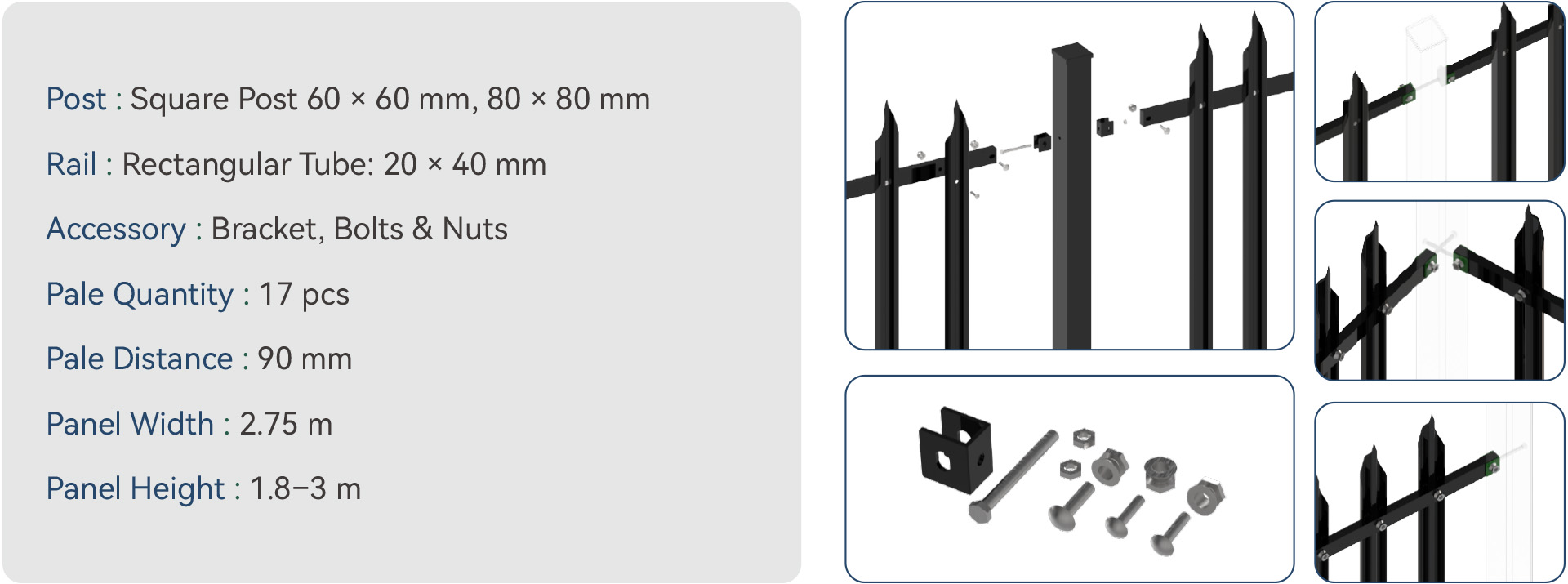

Square Post + Rectangular Tube Rail + Bracket
Square Post + Rectangular Tube Rail + Bracket

Various structures available for Palisade Fence

Introduction to Product Categories & Detailed Item Overview

Full-Service Industrial Chain

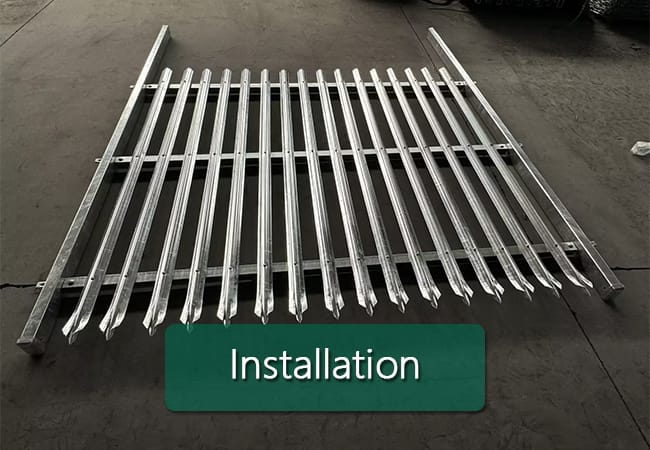

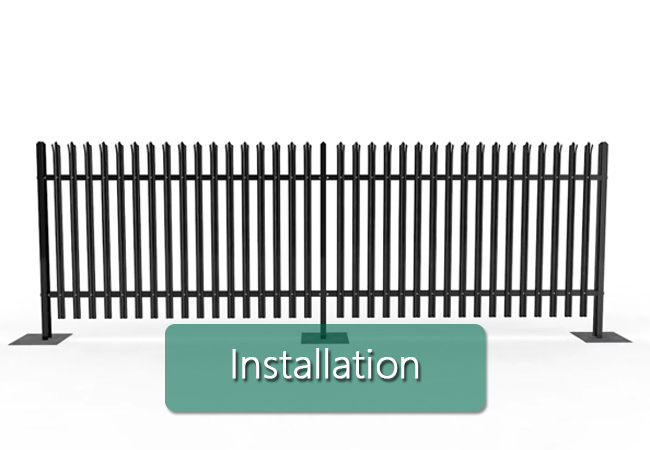

Installation-Video cover

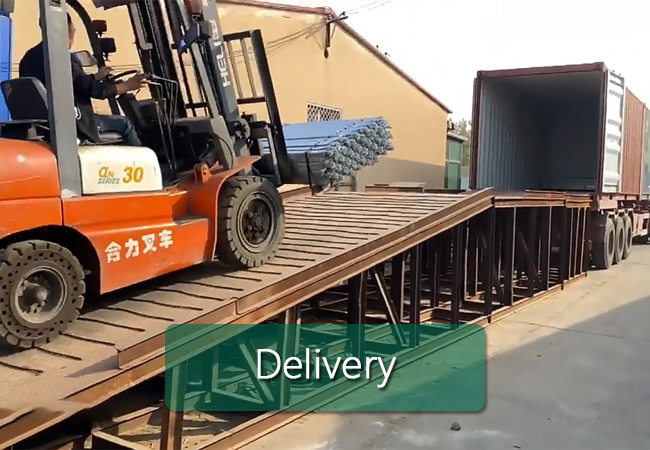

Delivery-Video cover

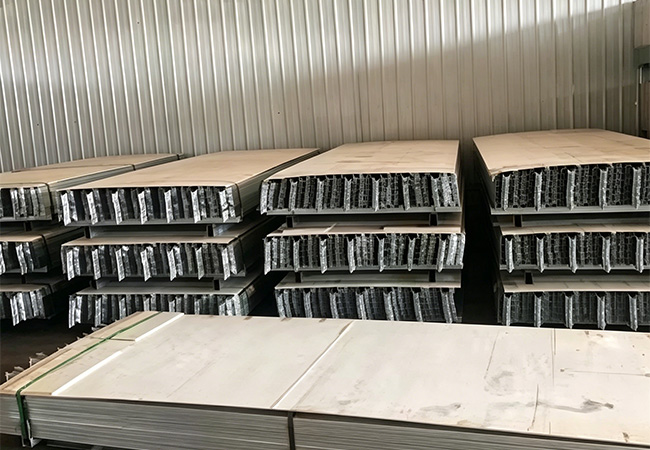

We provide a complete industrial chain covering production, coating, on-site installation and standardized warehousing services.

Applications of Palisade Fence

Residential

Safe & durable, beautiful appearance, perfect for home fencing.

Industrial

High strength & anti-corrosion, ideal for factory & warehouse protection.

Park

Environmentally friendly & decorative, blends well with landscape.

Commercial

Secure, aesthetic fencing for commercial buildings, office parks, and retail sites, balancing safety and professional design.

Production Process

Design

30+ years metal fence design experience, 30+ technical team; modular & scene-specific customization

Get instant QuoteSend Your Inquiry Now
Raw Materials

We select high-quality steel with strict testing, ensuring durability, corrosion resistance and stable performance for all fence products.

Get instant QuoteSend Your Inquiry Now
Expandable Fence

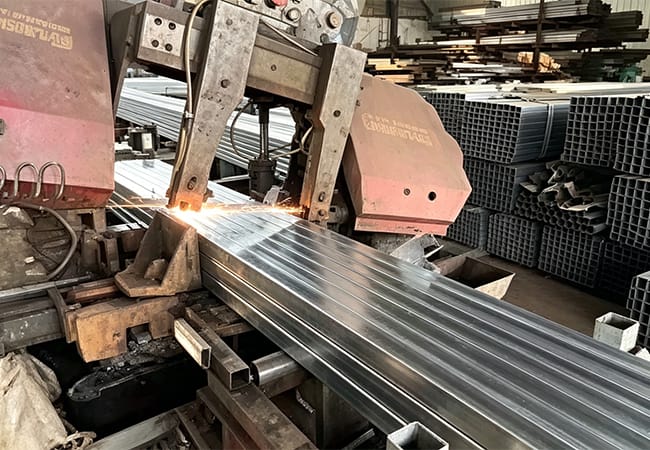

Cutting

High-precision cutting (laser/plasma) shapes raw materials into exact sizes, ensuring clean edges and perfect fit for subsequent assembly.

Get instant QuoteSend Your Inquiry Now

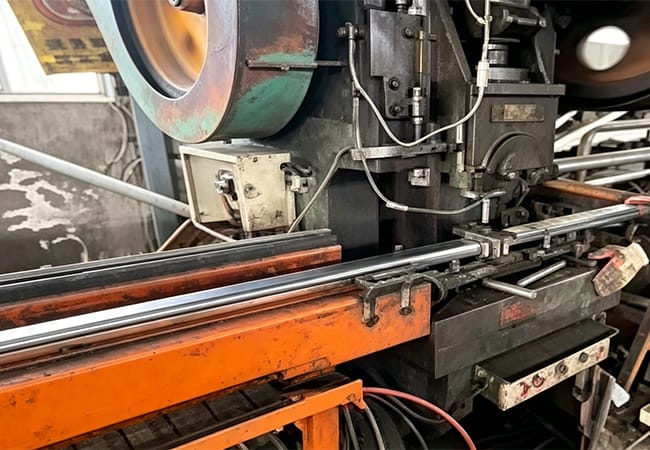

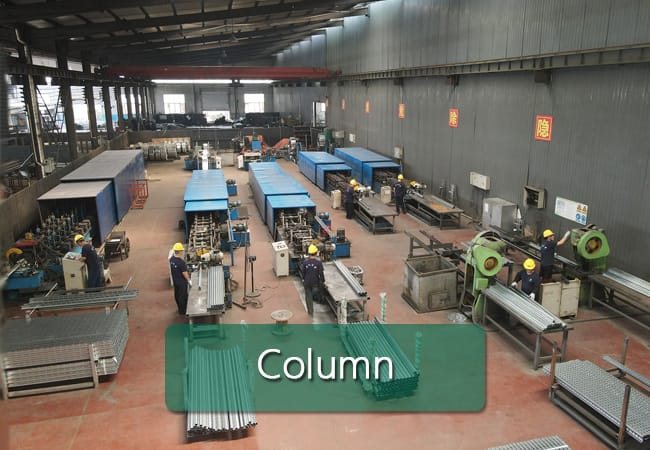

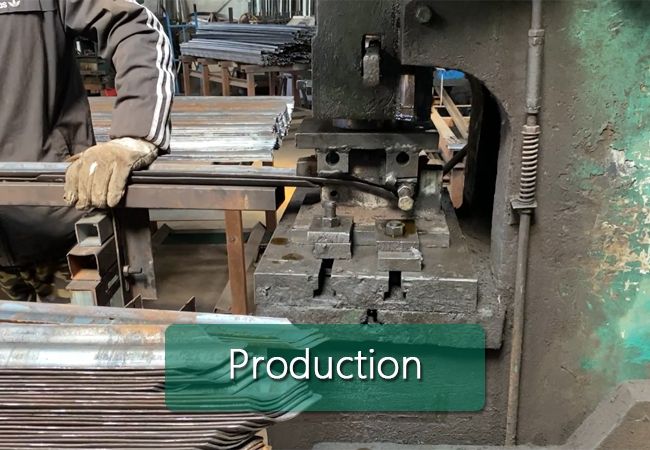

Pale Manufacturing

Raw materials are processed into complete fence panels through cutting, forming, and assembly, delivering uniform, durable units ready for installation.

Get instant QuoteSend Your Inquiry Now

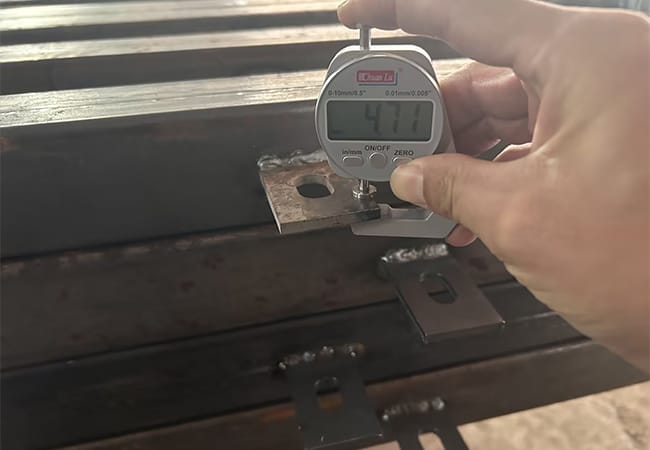

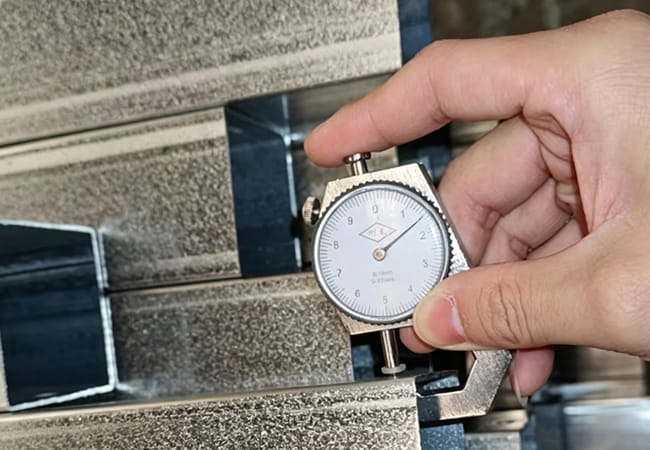

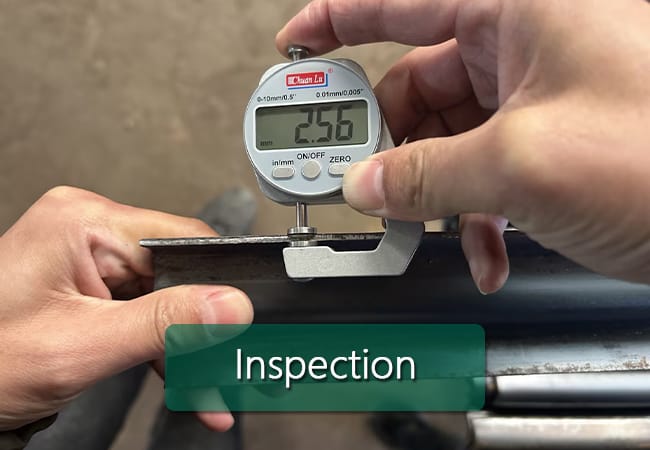

Quality Inspection

Strict quality inspection at each process ensures fence quality meets standards, with no defects and stable performance.

Get instant QuoteSend Your Inquiry Now

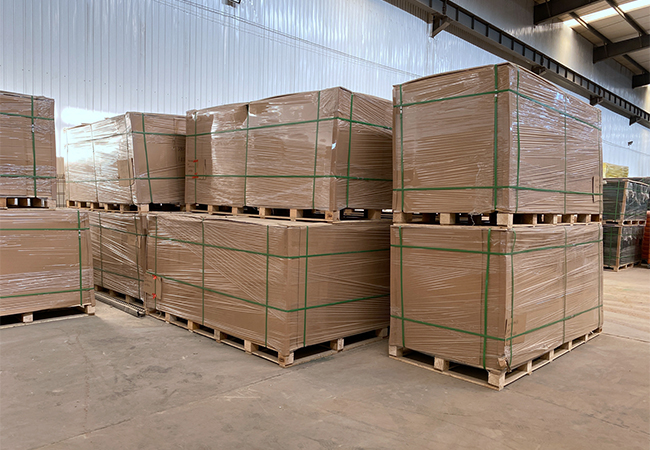

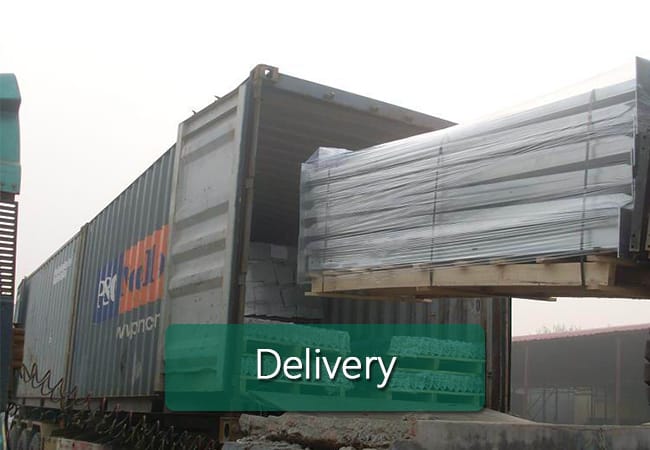

Packaging & Shipping

Standardized packaging protects products well; safe and efficient shipping ensures on-time delivery to global customers.

Get instant QuoteSend Your Inquiry Now

Related Product



Detailed Installation Process forPalisade Fence

The installation of palisade fence requires strict adherence to standardized procedures and precise operating steps to guarantee the overall structural stability, service safety, and neat aesthetic appearance of the finished fence. Below is a complete, step-by-step installation process with detailed operation guidelines, key technical points, and critical precautions:



1. Site Preparation & Layout Marking

Start by cleaning the installation site, removing weeds, stones, and uneven soil to ensure a flat construction ground. Use a measuring tape and string line to mark the exact fence route, post positions, and fence height. Accurate layout ensures straight alignment, uniform spacing, and a tidy overall appearance of the palisade fence. This step also helps avoid crooked sections and inconsistent panel gaps after installation.



2. Post Hole Digging

Drill or dig holes according to the marked positions. The hole depth and diameter should match the post size and local wind conditions. Generally, the embedding depth accounts for one-third of the total post height. Deeper burial is required for high-wind or open-area sites. Keep each hole vertical and consistent in depth to prevent tilted posts and unstable fence structures.



3. Post Fixing and Concrete Setting

Place the palisade fence posts into the pre-dug holes and adjust verticality with a level tool. Fill the holes with concrete and compact the surface tightly. Allow sufficient curing time for the concrete to fully harden. Firm post foundation is the core of long-term stable palisade fence performance, effectively preventing shaking, leaning, or collapse under external impact.



4. Palisade Panel Installation

After the concrete is completely solidified, start installing the palisade fence panels between fixed posts. Align the panels horizontally to ensure uniform height and straight lines. Fasten all bolts and brackets firmly. Make sure every connection point is tightly fixed to avoid loose panels, shaking, or misalignment. The sharp picket tops should remain consistent in height for a neat, uniform look.



5. Overall Inspection and Finishing

Check the entire fence line after installation. Inspect post verticality, panel flatness, bolt tightness, and overall alignment. Adjust any uneven or loose sections. Clean up the construction site and remove excess concrete and debris. A full inspection ensures the palisade fence achieves perfect security performance, stable structure, and clean aesthetic effect for long-term outdoor use.



Note

Always keep consistent post spacing and verticality during installation. Avoid over-tightening or under-tightening bolts to prevent panel deformation. For coastal, rainy, or high-humidity areas, ensure all cut surfaces and drilled positions are fully coated to maintain anti-rust performance. Standard installation greatly extends the service life of the palisade fence and improves overall site safety.





Palisade Fence by Hebei BENDIN

Hebei Bendin Industrial Technology Co., Ltd is a professional metal products manufacturer and exporter based in Anping, the famous “China Wire Mesh Hometown”, with more than 30 years of production experience. Our high-security palisade fence is a rigid perimeter fencing system designed for stable structure, strong impact resistance and long outdoor service life.
Made of high-quality low-carbon steel with precision cutting and full welding, our palisade fence boasts excellent anti-climbing and anti-collision performance. With a sleek pointed picket design, it combines high security and modern aesthetics. Available in hot-dip galvanized, PVC coated and duplex coated finishes, the fence features great rust, corrosion and UV resistance. It adapts to various harsh outdoor environments and can last over 30 years.





Application Areas Process for Palisade Fence



Industrial & Commercial Sites It is widely installed for factory perimeters, warehouse enclosures, industrial parks, logistics yards and power station boundaries. Featuring excellent impact resistance and anti-climbing performance, it provides long-term reliable safety isolation for industrial facilities.

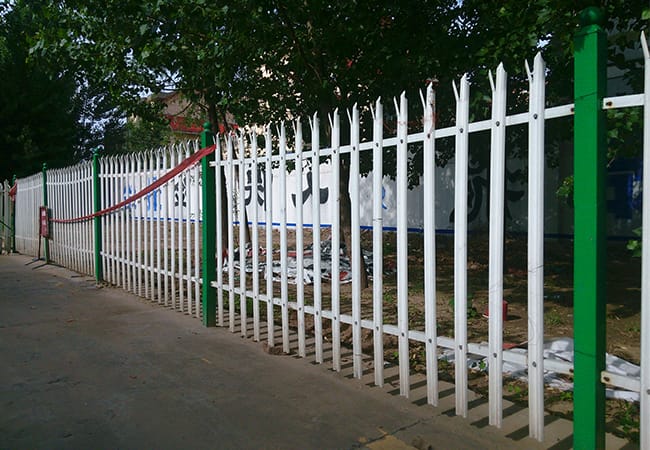

Public & Municipal Facilities Ideal for schools, hospitals, playgrounds, sports venues, government buildings and public parks. The standardized, aesthetic and durable design meets public safety standards while maintaining a tidy urban landscape.
Transportation Infrastructure Perfect for highway roadside isolation, railway perimeter protection, bridge peripheral fencing and traffic safety zoning. It adapts to complex outdoor environments and effectively prevents unauthorized crossing and intrusion.
Residential & Villa Projects Suitable for villa boundaries, residential community enclosures, backyard isolation and garden safety fencing. It balances high security and modern decorative effects, upgrading the overall grade of residential landscapes.
High-Security Key Areas It is also applicable for prisons, military zones, substations, water plants and other key protection sites. The rigid steel structure and sharp picket design deliver superior anti-intrusion performance for high-level security needs.





Core Advantages

High Structural Stability: Rigid fully welded steel tube structure delivers outstanding anti-collision and anti-climbing performance. The integral frame stays straight and stable under strong wind and external impact for long-term perimeter safety.
Superior Durability: Premium low-carbon steel with hot-dip galvanized, PVC or duplex coating. It features rust resistance, anti-corrosion and UV protection, maintaining intact appearance and strength in harsh coastal, rainy and high-temperature environments.
Modern & Attractive Appearance: Neat vertical pointed pickets create a tidy, premium visual effect. Multiple optional colors match residential, commercial and municipal architectural styles for coordinated landscape layout.
Cost-Effective Installation & Maintenance: Prefabricated panels are lightweight for low-cost transport. Quick bolt assembly cuts construction labor; no frequent repainting or repairing required, lowering long-term expenditure.

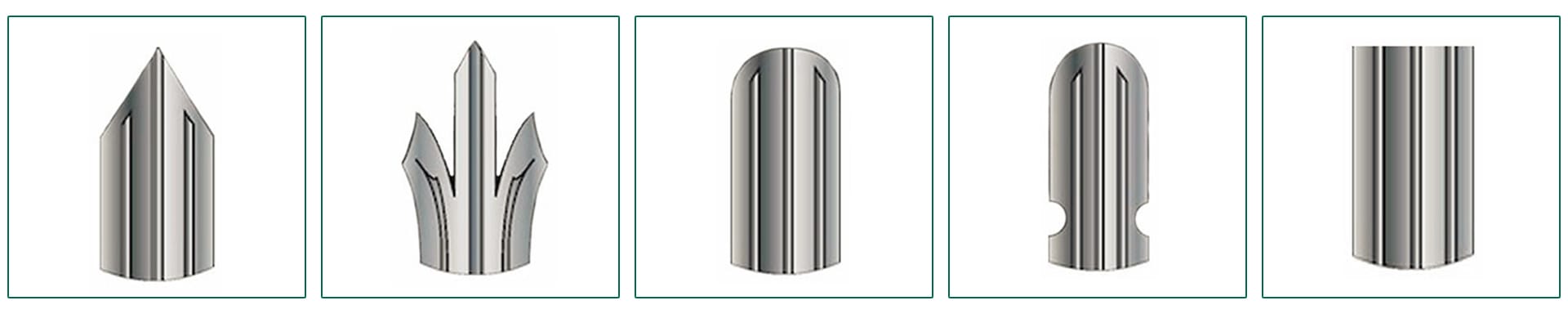

Wide Adaptability: Customizable heights, picket spacing and decorative tops to fit factory yards, villa compounds, schools, traffic zones and high-security sites, meeting diverse boundary protection demands.
