Wire Mesh Cable Tray: Benefits, Specifications and Applications

Wire mesh cable trays provide an open support structure for routing and organizing power, control and communication cables. Their welded wire construction, accessible layout and adaptable installation make them a practical option for many industrial, commercial and infrastructure projects.

Compared with some enclosed cable routing systems, wire mesh trays allow greater exposure to surrounding air and make cable routes easier to inspect. Their suitability depends on the cable types, total loading, tray dimensions, support spacing, installation environment and applicable electrical requirements.

Bendin (Hebei Bendin Industrial Technology Co., Ltd.) supplies customizable metal products for industrial and infrastructure applications, including wire mesh cable tray solutions according to product availability and project requirements.

This guide explains wire mesh cable tray construction, key advantages, technical specifications, surface treatments, installation considerations and selection criteria for modern cable management projects.

1. What Is a Wire Mesh Cable Tray?

A wire mesh cable tray is a cable support system manufactured from metal wires welded into an open mesh structure and formed into a tray profile.

It supports cable routes along suitable walls, ceilings, equipment areas and other designated locations when installed with compatible supports and accessories.

A typical system may include:

• Welded wire mesh tray sections

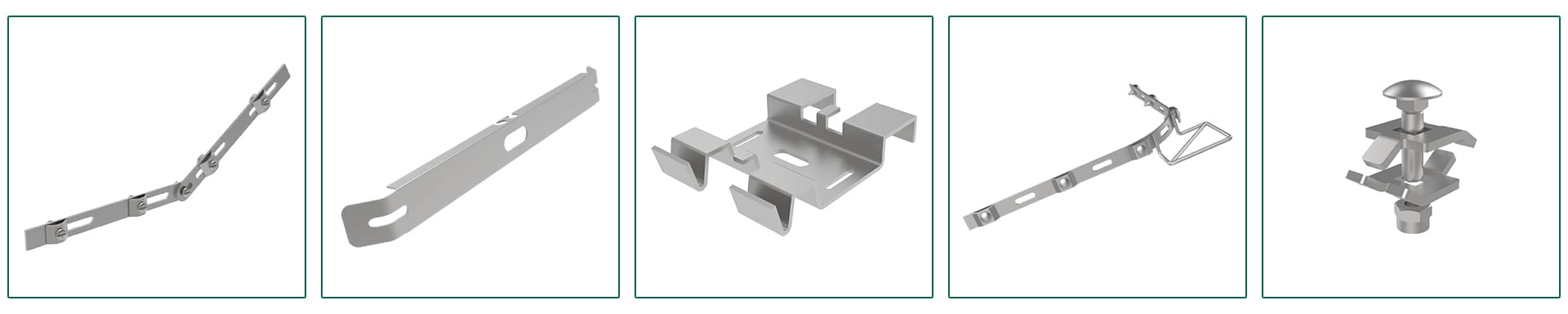

• Connecting pieces and couplers
• Wall brackets and ceiling supports
• Suspension rods and mounting accessories
• Compatible bends, tees and routing components
• Fasteners and other installation hardware
• Optional covers or protective accessories, where available

The complete configuration depends on the cable schedule, required route, support arrangement, environmental exposure and installation design.

Wire mesh trays are often considered where accessibility and an open structure are important. However, they are not automatically suitable for every cable type or environment. Projects may require additional mechanical protection, enclosure, separation or other measures under the applicable electrical requirements.

2. Key Benefits of Wire Mesh Cable Trays

Open Structure and Airflow

The open mesh design allows air to circulate around supported cables.

This may assist heat dissipation compared with some enclosed routing arrangements, although actual cable temperature depends on cable type, loading, cable grouping, ambient temperature and installation conditions.

Easier Cable Inspection

The visible structure makes it easier to inspect cable routes and identify areas requiring maintenance.

Technicians can often access cables without opening a continuous enclosure, depending on the installed configuration.

Flexible Installation

Wire mesh trays can be arranged around suitable equipment layouts and cable routes. Compatible bends, tees and connectors help accommodate changes in direction.

Where field cutting or modification is permitted, the work should follow the manufacturer’s instructions and preserve the required structural and protective performance.

Convenient Cable Expansion

An accessible tray route may simplify the addition or reorganization of cables during future upgrades.

However, new cables should only be added after checking available capacity, loading, cable separation and the applicable installation requirements.

Efficient Material Use

The open wire structure uses less enclosing material than some solid-bottom designs. Actual material consumption, weight and overall cost depend on tray dimensions, wire specification and accessories.

3. Wire Mesh Cable Tray Specifications

Selecting the correct specification is essential for ensuring that the tray matches the cable load, route geometry and installation environment.

Bendin can discuss customized configurations according to product availability, manufacturing capabilities and project requirements.

These are indicative configuration options rather than guaranteed specifications for every product. Confirm available widths, side heights, wire diameters, mesh dimensions, tray lengths and finishes before ordering.

Tray Width and Side Height

Tray width determines the available cable-routing space. Side height affects the tray geometry and how cables are arranged within the system.

The selected dimensions should reflect the cable schedule, required cable separation, routing constraints and anticipated future expansion.

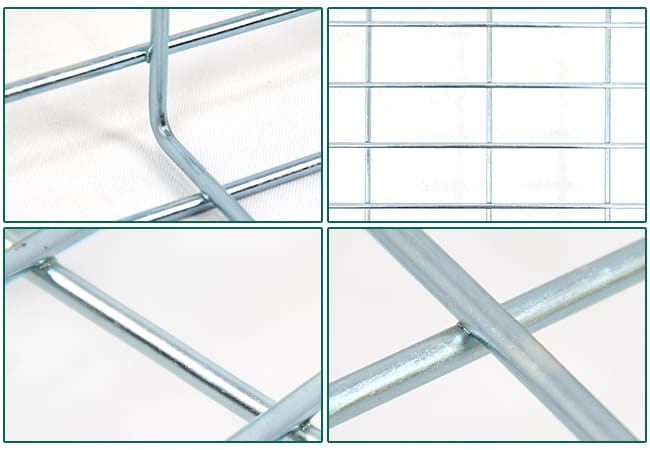

Wire Diameter and Mesh Dimensions

Wire diameter and mesh geometry influence the structure and weight of the tray, but they do not independently establish its load capacity.

The complete configuration—including tray dimensions, support span, connectors and installation method—must be considered.

Tray Length and Accessories

Standardized tray sections may simplify transportation and installation. Bends, tees, couplers and other accessories should match the selected tray system.

Before ordering, review the complete cable route to determine the required sections, connections and accessories.

4. Surface Treatment and Corrosion Protection

Wire mesh cable trays may be installed in dry indoor areas, humid workshops, outdoor routes or environments exposed to industrial pollutants.

The appropriate surface treatment depends on the base material, manufacturing process and operating conditions.

Electro-Galvanized Finish

Electro-galvanizing applies a zinc coating to steel and may be considered for selected applications.

The required coating specification should be confirmed against the intended environment and product requirements.

Hot-Dip Galvanizing

Hot-dip galvanizing provides a zinc coating that helps protect steel against corrosion.

The appropriate specification depends on the tray design, manufacturing process and environmental exposure.

Powder-Coated Finish

Powder coating provides a decorative finish and an additional protective layer when applied over an appropriately prepared substrate.

It may be selected where a specified color or finish is required, provided the coating system is suitable for the operating environment.

Choosing the Right Finish

No coating system should be assumed suitable for every environment. Confirm the actual specification, inspection requirements and maintenance recommendations before ordering.

Salt-spray test results should identify the tested sample, test method and acceptance criteria. Laboratory test hours should not be directly converted into a guaranteed number of outdoor service years.

5. Applications of Wire Mesh Cable Tray Systems

Industrial and Manufacturing Facilities

Factories use cable management systems to route power, control and communication cables between electrical panels, production equipment and automated machinery.

Wire mesh trays may be considered where accessible routing and flexible installation are important.

The selected tray must match the cable load, support arrangement, environmental exposure and applicable electrical requirements.

Commercial Buildings

Commercial buildings may use cable trays above ceilings, in service areas and along other suitable routes.

The cable management design should be coordinated with other building services, maintenance access and the approved electrical layout.

Data Centers and Communication Facilities

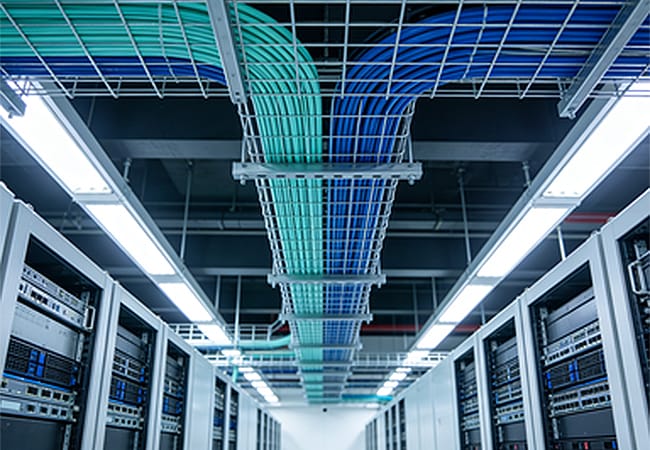

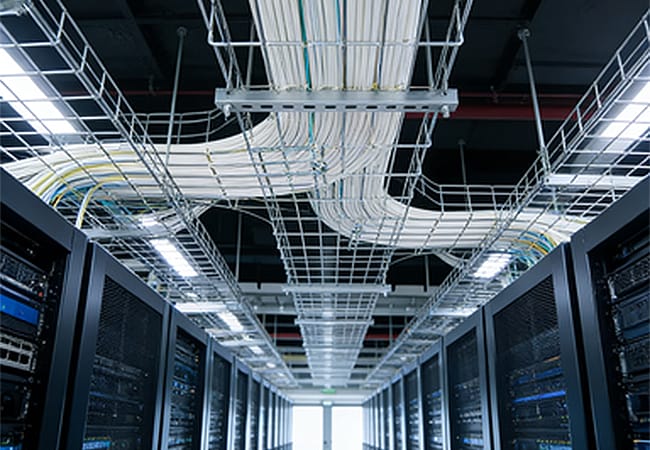

Data centers require organized cable routes to support equipment operation, inspection and future changes.

Wire mesh trays may be suitable for selected cable routes, provided the tray dimensions, loading, cable types and separation requirements match the facility design.

Airports and Infrastructure Facilities

Infrastructure projects may use cable trays for selected electrical and communication installations.

The tray system must match the environmental conditions, cable specifications, support structure and applicable project requirements.

Industrial Control Systems

Control and instrumentation cables may require separation from other cable groups, depending on the system design and applicable requirements.

Tray routes should be planned around cable destinations, maintenance access and any required separation.

6. How to Choose the Right Wire Mesh Cable Tray

A suitable cable tray should be selected according to the complete installation rather than dimensions alone.

Step 1: Identify the Cable Types

Determine whether the tray will support power, control, communication or instrumentation cables.

Different cable types may have different support, separation, bending-radius and installation requirements.

Step 2: Estimate the Cable Load

Calculate the expected cable weight and distribution along the tray route.

Include the intended initial installation and any planned future expansion.

Step 3: Confirm Tray Dimensions

Select tray width and side height according to the cable schedule, routing requirements and applicable installation rules.

Step 4: Check Load Capacity and Support Spacing

Use the manufacturer’s load data for the selected tray configuration and support span.

Support spacing should not be based on a universal rule. The tray, connectors, supports and mounting structure must all be suitable for the intended loading.

Step 5: Select the Surface Treatment

Consider moisture, airborne salt, industrial pollutants, cleaning procedures and other environmental conditions.

Step 6: Confirm Accessories and Connections

Check compatibility among tray sections, couplers, bends, tees, brackets, supports and fasteners.

Step 7: Plan for Maintenance and Expansion

Provide suitable access for cable inspection, maintenance and future modifications.

Future capacity should be assessed during design rather than assumed from unused physical space alone.

7. Wire Mesh Cable Tray vs. Other Cable Routing Systems

The most suitable system depends on cable types, loading, environmental exposure, routing arrangement and applicable electrical installation requirements.

An open mesh tray should not automatically be considered equivalent to an enclosed or protective cable routing system.

8. Installation Best Practices

Correct installation helps maintain cable support, route organization and long-term accessibility.

Step 1: Prepare the Cable Route

Review the electrical layout and identify the route, changes in direction, equipment connections and maintenance access requirements.

Coordinate the route with other building services and structural components.

Step 2: Confirm the Tray Specification

Verify tray width, side height, wire diameter, mesh dimensions, surface treatment and required accessories.

Check that the selected configuration matches the cable schedule and expected loading.

Step 3: Plan the Supports

Determine support locations according to the manufacturer’s technical data, tray configuration, cable load and mounting conditions.

Confirm that brackets, suspension components and anchors are suitable for the supporting structure.

Step 4: Assemble Tray Sections

Connect tray sections using compatible connectors and fasteners.

Check alignment and install connections according to the manufacturer’s instructions.

Step 5: Install Routing Accessories

Fit compatible bends, tees and other components according to the approved route.

Where field cutting or modification is permitted, finish the affected edges and restore any required protective coating according to the manufacturer’s instructions.

Step 6: Route and Secure Cables

Install cables according to the electrical design and the requirements for cable type, support, separation and bending radius.

Avoid exceeding the permitted loading or overcrowding the tray.

Step 7: Inspect the Completed Installation

Check tray alignment, support stability, connector security, cable arrangement and maintenance access.

The completed installation should comply with the applicable electrical requirements and approved project documents.

9. Maintenance and Inspection

Routine inspection helps identify damage, corrosion or overloading before these issues affect the cable support system.

The appropriate inspection frequency depends on the environment, cable loading and project requirements.

Visual Inspection

Check for:

• Loose connectors and fasteners
• Deformed tray sections
• Damaged coating
• Visible corrosion
• Unstable supports
• Excessive cable accumulation
• Damaged cable insulation
• Obstructed access to inspection points

Cleaning

Remove dust and other contaminants using methods suitable for the material and operating environment.

Where industrial pollutants or corrosive deposits are present, follow the site’s approved cleaning procedures.

Repairs and Replacement

Damaged components should be assessed and repaired or replaced according to the manufacturer’s instructions and applicable electrical safety requirements.

After modifying a tray route, confirm that the support arrangement and load capacity remain suitable for the revised installation.

Maintenance Records

For larger facilities, keep records of inspections, repairs and changes to cable routes. These records help track recurring issues and support future expansion planning.

10. Illustrative Project Example: Industrial Workshop Cable Routing

A manufacturing facility plans to organize power and control cables between an electrical room and several automated production lines.

The project team evaluates a wire mesh cable tray system to provide accessible routing and support for the specified cables.

Preliminary Configuration

Before installation, the project team confirms cable quantities, expected loading, support spacing, route layout and applicable electrical requirements.

This approach helps align product selection with the actual installation instead of choosing a tray based on dimensions alone.

This is an illustrative project scenario, not a completed Bendin customer installation.

11. How to Select a Wire Mesh Cable Tray Supplier

When comparing suppliers, evaluate the actual product specification and technical information rather than relying solely on general marketing descriptions.

Product Range

Confirm available tray widths, side heights, wire specifications, finishes and compatible accessories.

Technical Drawings

Request drawings showing tray dimensions, connection details and relevant installation interfaces.

Load Data

Request load information applicable to the selected tray size and support span.

Surface Treatment

Confirm the actual material, coating process and environmental suitability.

Component Compatibility

Verify that tray sections, connectors, bends, supports and fasteners are designed to work together.

Quality Documentation

Agree on inspection requirements and identify any relevant test reports or certificates.

Packaging and Delivery

Confirm product identification, packaging arrangements, shipment quantities and required export documents.

For customized projects, approve the final specifications and bill of materials before production begins.

12. Bendin Wire Mesh Cable Tray Solutions

Bendin supplies customizable metal products for industrial and infrastructure applications. Wire mesh cable tray configurations can be discussed according to product availability, manufacturing capabilities and project requirements.

Customization may include:

• Tray width and side height
• Wire diameter and mesh dimensions
• Tray lengths and routing components
• Compatible connectors and fasteners
• Support brackets and mounting accessories
• Surface treatment and finish
• Packaging and OEM requirements

Customers can provide cable schedules, routing drawings, installation conditions and technical specifications for review before ordering.

For projects requiring specific load performance or environmental resistance, the relevant requirements should be confirmed before the product configuration is finalized.

13. Frequently Asked Questions

What is a wire mesh cable tray used for?

It supports and organizes electrical, control and communication cables in suitable commercial, industrial and infrastructure installations.

Do wire mesh cable trays improve ventilation?

Their open structure allows air to circulate around cables. Actual cable temperature depends on cable type, loading, installation density and environmental conditions.

Can wire mesh cable trays be used outdoors?

They may be suitable for outdoor installations when the material, surface treatment, supports and accessories are specified for the environment.

How do I select the correct tray width?

Consider cable quantities, cable sizes, routing requirements, applicable fill or separation rules and anticipated future expansion.

How do I determine the correct support spacing?

Use the manufacturer’s load data for the selected tray configuration and actual cable load. Support spacing should not be based on a universal rule.

Are wire mesh cable trays waterproof?

Not necessarily. An open mesh tray is not a waterproof enclosure. Where environmental protection is required, assess the complete cable installation and any suitable protective measures.

Can Bendin customize wire mesh cable trays?

Customization can be discussed according to product availability and manufacturing capabilities. Confirm the required dimensions, wire specifications, finish and accessories before ordering.

14. Request a Wire Mesh Cable Tray Quotation

Wire mesh cable trays provide an accessible cable support structure for many industrial, commercial and infrastructure applications.

The correct configuration depends on tray dimensions, wire specifications, cable loading, support spacing, surface treatment and installation conditions.

Bendin (Hebei Bendin Industrial Technology Co., Ltd.) welcomes inquiries from international distributors, contractors, system integrators and project owners.

For a quotation, provide:

• Intended application
• Tray width and side height
• Required wire diameter and mesh dimensions
• Cable types and estimated loading
• Support spacing and mounting requirements
• Surface treatment and environmental exposure
• Required connectors and routing accessories
• Quantity and delivery destination

Bendin can review your requirements and discuss a suitable wire mesh cable tray configuration for your project.
