Detailed Installation Process & Product Introduction of Farm Gate
1. On-Site Cleaning and Positioning Marking
Clean the gate installation passage thoroughly to remove weeds, stones, mud and construction debris, and level the gate doorway ground to ensure smooth opening and closing of the gate leaf. Accurately mark mounting positions of gate hinge posts, fixed stop posts and foundation range with professional measuring tools and level gauges.
Reserve standard doorway width according to gate specification: common farm gate width ranges from 1.8m to 6m. Bury 1/3 to 1/4 of the total hinge post and stop post height underground to enhance anti-shake, wind-resistant and livestock impact resistance. Keep all marking lines vertical and horizontal to guarantee parallel installation of double gate leaves and smooth switch operation.
2. Foundation Digging and Post Fixing
Dig mounting holes 1.8–2 times the gate post diameter and clear loose soil, ponding and gravel at the hole bottom to prevent foundation settlement and post tilt. Place hinge posts and limit stop posts vertically and calibrate their verticality with a plumb line, then fix wooden support brackets temporarily to avoid lateral offset during concrete solidification.
Fill holes with high-strength anti-frost concrete and tamp tightly layer by layer to eliminate internal air bubbles. Keep the concrete foundation surface 3–5 cm higher than the surrounding ground to drain rainwater rapidly and avoid base waterlogging and metal corrosion. Allow concrete to cure for at least 48 hours; extend curing time to 72 hours in low-temperature, rainy and humid weather for load-bearing firm fixation.
3. Gate Leaf Hoisting and Positioning
After complete concrete curing and foundation hardening, inspect farm gate leaf, hinge fittings and posts for no deformation, paint peeling or welding defect. Hoist the integral farm gate leaf stably, align reserved hinge mounting holes with embedded hinge bases on main posts.
Adjust gate leaf horizontal height to keep 3–8 cm ground clearance to reduce ground friction, prevent mud abrasion and prolong anti-corrosion service life. Fine-tune gate angle to fit slight slope doorway terrain, ensure single/double gate leaves open and close freely without scraping ground. Reserve 2–4 mm gap between double gate leaves for thermal expansion contraction, fix hinge components temporarily after positioning calibration.
4. Accessory Fastening and Fixed Installation

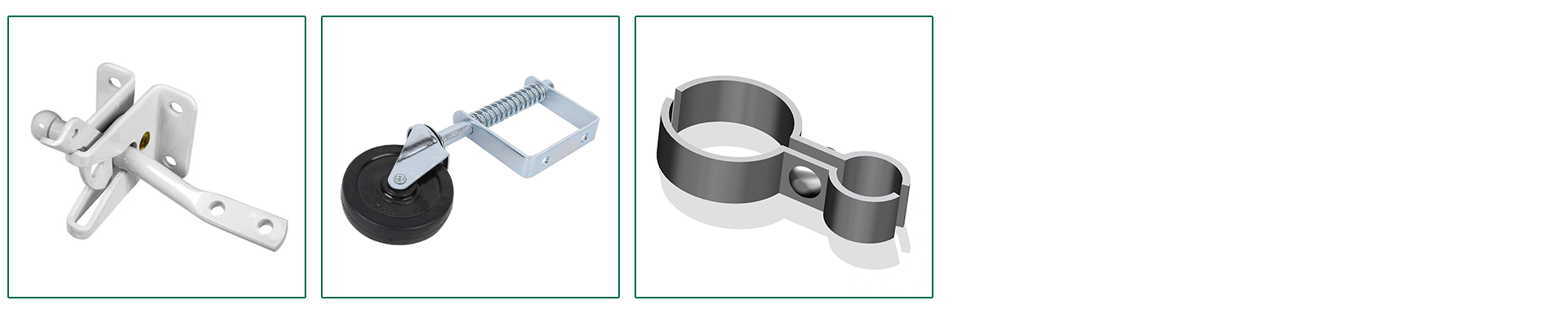

Equip with customized farm dedicated accessories including heavy-duty anti-rust hinges, lock latches, anti-loosening bolts, rubber gaskets and ground drop bolts. All hardware adopts hot-dip galvanized treatment, featuring strong anti-corrosion, anti-rust and anti-theft performance for long-term outdoor pasture and farm use.

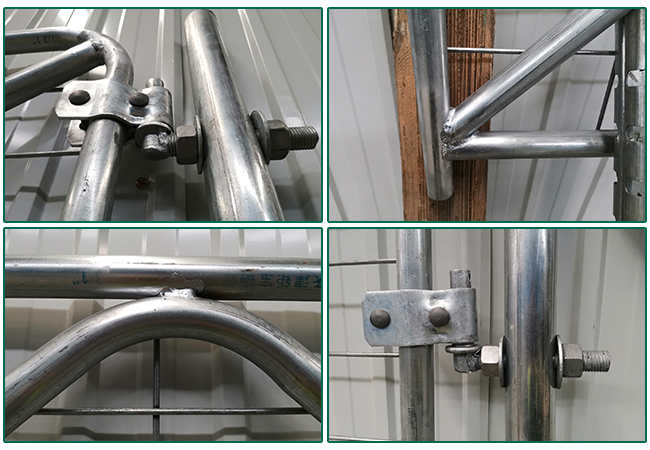

Install and fasten all hardware accessories evenly with professional torque tools, avoid over-tightening causing gate frame deformation or under-tightening leading to hinge shaking. Reinforce welding joint and hinge stress points additionally, install ground drop bolt for windproof fixation, inspect every connecting fitting one by one to eliminate installation hidden dangers.
5. Overall Calibration and Quality Inspection
Recheck gate post verticality, gate leaf horizontal level and doorway parallelism with level tools. Test full opening and closing stroke repeatedly to confirm no jamming, friction or offset. Shake gate frame gently to verify integral structural firmness, no loose hinges, shaking frame or abnormal noise.
6. Surface Cleaning and Project Acceptance
Check terrain adaptability of the gate assembly, confirm the gate can adapt to farm slight slope ground, with flexible switch and no frame distortion. Adjust hinge tightness and stop block position to rectify installation deviations, fully meeting farm standard construction requirements.
Clean cement residues, dust, welding spots and surface stains on gate frame and hardware. Protect hot-dip galvanized and PVC coated anti-rust outer layer strictly. Prohibit strong acid, alkaline corrosive detergents to avoid coating peeling and metal rusting.
Installation Notes
Complete final acceptance by checking post verticality, doorway size, hinge flexibility, locking stability, foundation firmness and surface coating integrity. The installation is qualified only when no frame deformation, coating damage, rust spot, hardware loosening or switch jamming exists.
Wear standard safety protective gear including gloves, safety shoes and goggles during construction. Avoid violent collision, surface scratching and heavy extrusion on gate frame to protect anti-corrosion coating and hinge structure, ensuring long-term stable use in outdoor farm environments.

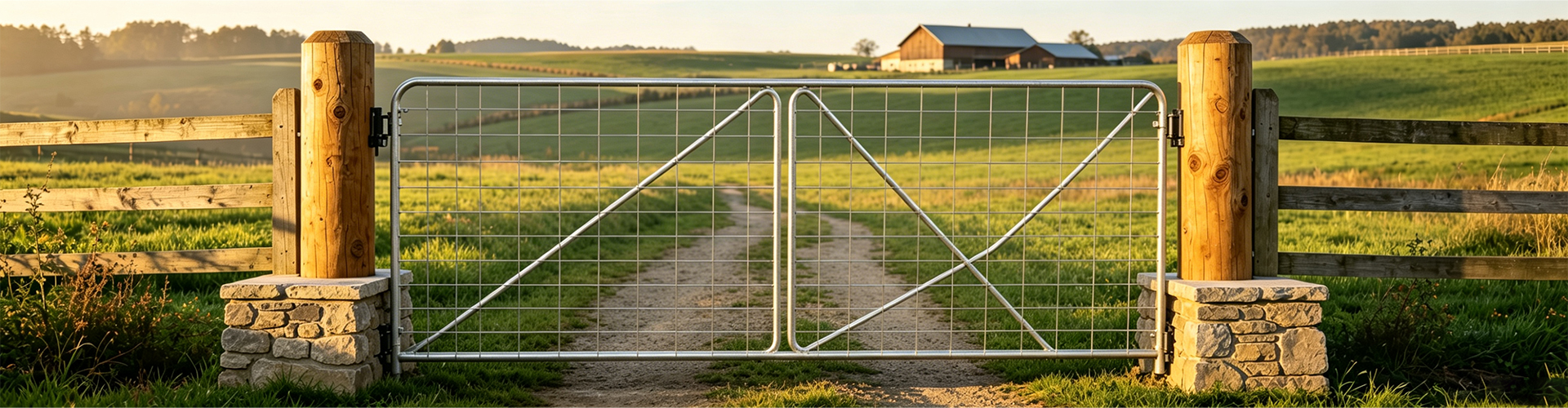

Farm Gate | Heavy-Duty Agricultural Gate from BENDIN
Located in Anping, China’s famous wire mesh and metal fence hometown, Hebei BENDIN Technology boasts 30+ years of agricultural metal gate manufacturing and exporting experience. Our heavy-duty farm gate is a customized pasture-dedicated access control product, adopting thickened square tube integral welding structure, which is far more load-bearing, anti-impact and durable than ordinary thin-walled garden gates.

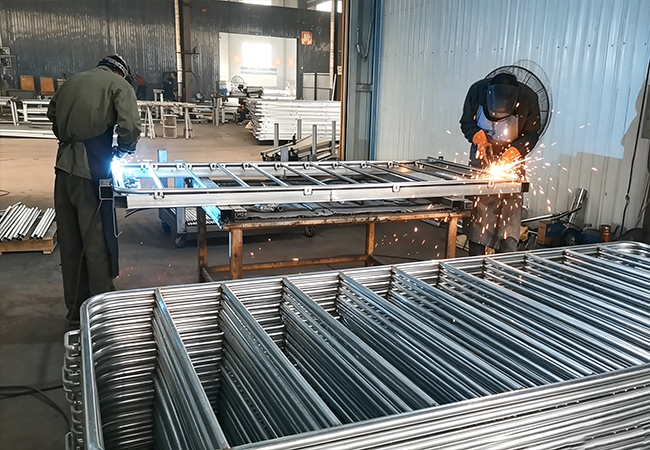

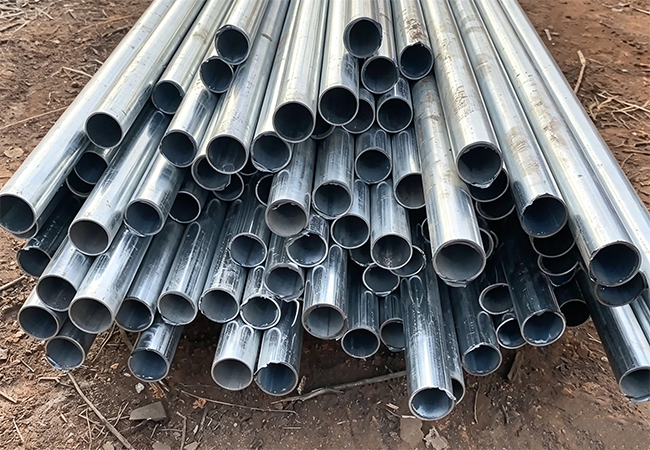

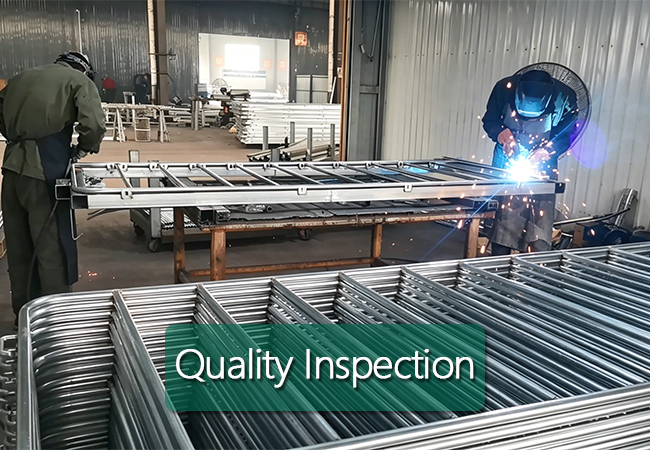

Made of high-grade thick low-carbon steel pipe via full-automatic welding, integral rust removal and reinforced corner treatment, it features strong compression resistance and livestock collision resistance. With dual-layer hot-dip galvanized or outdoor-grade PVC coated surface treatment, it delivers outstanding rustproof, UV-resistant, frost-resistant and soil corrosion resistance performance, with a service life of over 20 years for all-weather outdoor farm use.
Wide Application of Farm Gate
This heavy-duty anti-rust farm gate is designed for agricultural outdoor access management scenarios, requiring high structural strength, anti-theft performance and terrain adaptability.

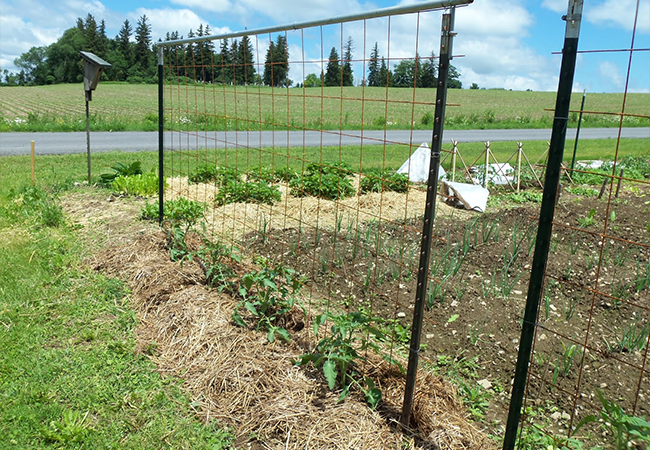

Farmland & Orchard Entrance Control: Serves as main access gate for crop farms, fruit orchards and seedling nurseries, blocks wild animal invasion and unauthorized personnel access, protects planting assets.

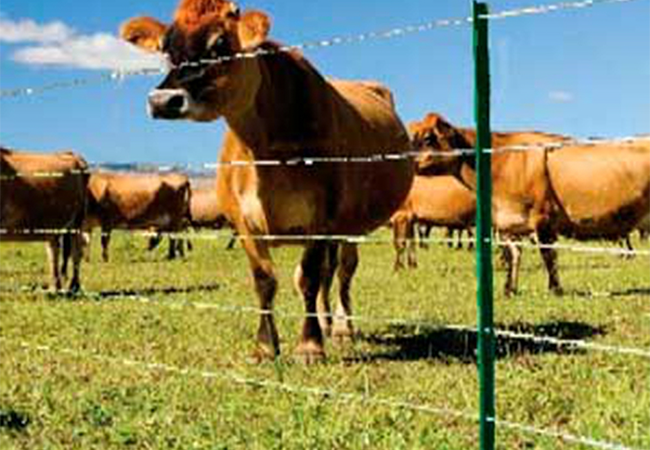

Livestock Breeding Farms: Ideal for cattle, sheep, horse and poultry farm passage isolation. Reinforced frame resists livestock impact, matched anti-escape lock latch prevents livestock escaping, standardizes farm feeding and outbound management.

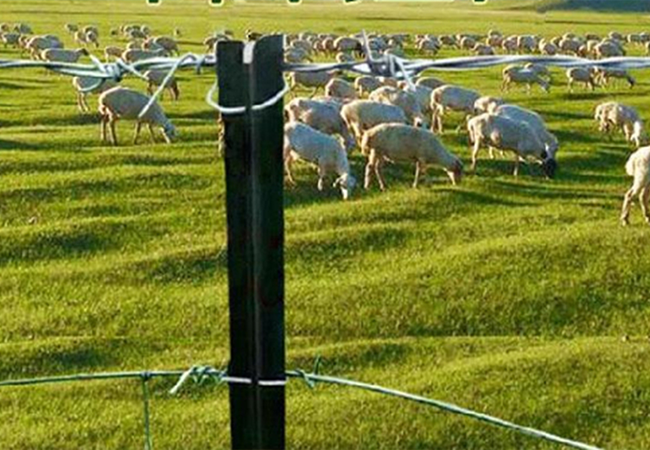

Mountain and Grassland Pastures: Adapts to uneven ground and slope passage, matches pasture boundary fencing, used for grazing area access control and regional partition management.
Suburban Rural & Ranch Courtyard: Applicable for rural courtyard gate, suburban ranch boundary entrance, farm warehouse access, realizing safe, neat and durable regional isolation.
Core Advantages of Farm Gate
Super Anti-Impact & Load-Bearing Performance: Thickened integral steel tube frame + reinforced welding corner design, effectively buffers fierce livestock collision, no frame bending, welding crack or deformation for long-term breeding farm use.
Full Weather Anti-Rust & Anti-Aging Property: Multi-layer anti-corrosion treatment resists rain erosion, sunlight aging, farm manure and soil corrosion, keeps intact appearance and structural performance in four-season outdoor environment.
Modular Assembly & Labor-Saving Installation: Finished integral gate leaf + standard matched posts and hardware, no on-site cutting, welding or painting required, shortens construction period and cuts manual cost for large ranch projects.
Anti-Escape Lock Design & Low Maintenance: Matched livestock anti-opening lock latch and ground drop bolt prevent accidental opening by animals. Integrated sturdy structure needs no daily repair, factory direct sales and long service life reduce overall farm operation input.
