Livestock Panel

1. Site Preparation & Marking

Before starting the installation, thorough site preparation is the foundation to ensure the smooth progress of subsequent operations. First, clear the entire construction area, remove all obstacles such as stones, weeds, garbage and sundries that may affect the installation, and clean the ground to avoid interference with positioning and drilling. Then, use a level to check the flatness of the installation ground; if there are local uneven areas, level them with fine soil or concrete to ensure that the livestock panel can be installed vertically and stably. Next, according to the design drawings and actual installation requirements, use professional measuring tools (such as tape measure, theodolite and ink line) to mark the installation positions of each fence post and livestock panel. The spacing between posts should be strictly in line with the design specifications (usually 2-3 meters, which can be adjusted according to the panel height, livestock size and anti-collision bearing requirements), and the marking lines should be straight and clear to ensure that the overall layout of the fence is neat and consistent. At the same time, mark the depth of the post holes on the ground according to the height of the posts (generally, the buried depth of the posts is 1/3-1/4 of the total height, ensuring sufficient stability to resist wind, cattle and horse impact and external heavy collision).

2. Post Installation

Post installation is the core link affecting the overall stability of the livestock panel fence, and every detail needs to be strictly controlled. First, use an electric drill or excavator to dig holes at the marked positions; the diameter of the holes should be 1.5-2 times the diameter of the posts to leave enough space for pouring concrete and ensuring the firmness of the posts. After digging the holes, clean the soil and debris at the bottom of the holes to avoid uneven stress on the posts. Then, place the fence posts vertically into the holes, and use a plumb line to check the verticality of the posts (both front and back, left and right directions should be perpendicular to the ground, with an error not exceeding 3mm), and use wooden stakes or temporary supports to fix the posts to prevent them from tilting during concrete pouring. Next, pour high-strength concrete (cement, sand and gravel ratio is usually 1:2:3) into the holes, and continuously tamp the concrete with a tamper during the pouring process to eliminate air bubbles and ensure that the concrete is closely combined with the posts and the hole wall. After pouring, smooth the surface of the concrete and make it slightly higher than the ground to prevent water accumulation from eroding the posts. Finally, let the concrete fully solidify; the solidification time is not less than 24 hours (the solidification time should be appropriately extended in low temperature or humid environment) to ensure that the posts are firmly fixed in the ground and can withstand frequent heavy impact from livestock without shaking.

3. Livestock Panel Positioning

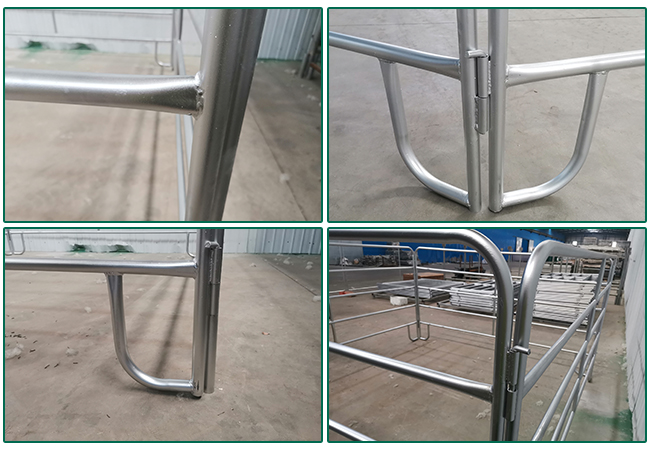

After the concrete of the posts is completely solidified, the positioning of the livestock panel can be carried out. First, check the reserved mounting holes on the posts and the pre-punched holes on the solid steel livestock panel, confirm no panel bending, hole deformation or edge damage, to guarantee perfect matching between holes and fasteners. Then, use manual lifting tools to carry the rigid livestock panel (take care to protect the galvanized or coated surface and solid pipe welding joints, avoid collision deformation and surface coating damage), align the reserved mounting holes on both ends of the panel with the installation holes on two adjacent posts. During the alignment process, adjust the height and position of the panel: the bottom of the panel should be 5-10cm above the ground to prevent ground moisture corrosion and livestock digging under the fence, keep the whole panel horizontal and straight without tilting. At the same time, ensure that the gap between adjacent panels is uniform (usually 2-5mm) to reserve space for steel thermal expansion and contraction, prevent extrusion deformation between solid panels. After adjusting to the correct position, use temporary fixing clips to fix the livestock panel and the posts temporarily to prevent offset during formal fastening operation.

4. Fastening with Special Accessories

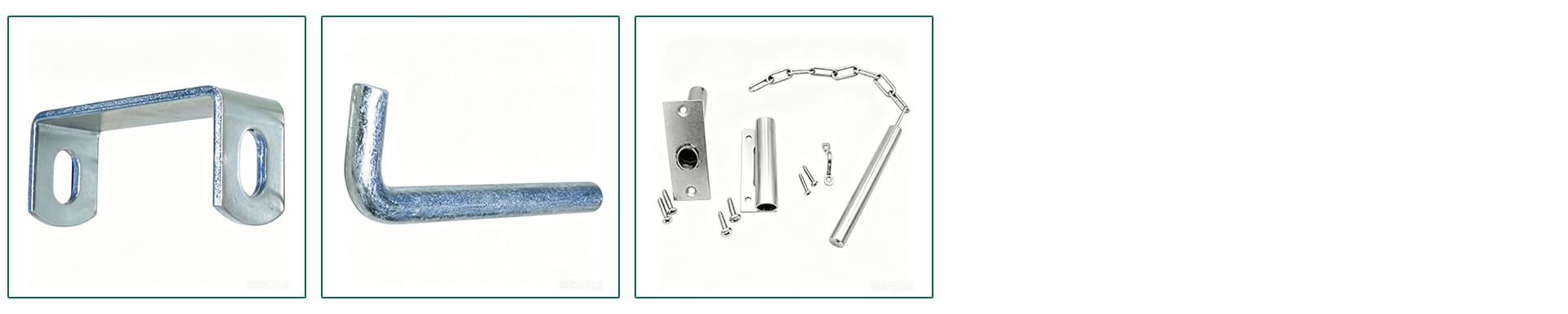

The fastening of special accessories directly affects the connection firmness between the livestock panel and the posts, and is an important guarantee for the service life of the farm enclosure fence. First, select matching special accessories according to the panel specification, including heavy-duty bolts, nuts, thickened flat washers, U-brackets and panel clamps, all adopt hot-dip galvanized anti-rust and anti-loosening hardware to improve corrosion resistance and impact stability. Then, pass the bolts through the mounting holes of the livestock panel and the posts, install washers and nuts in sequence; when tightening, use a torque wrench to control the torque (usually 30-50N·m) to ensure that the bolts are tightened evenly, without over-tightening to crush the panel pipe wall, or insufficient tightening leading to panel loosening after livestock impact. For corner positions and large-size heavy panels, use reinforced corner fixing brackets for auxiliary installation, evenly disperse impact force to protect the welding joints of the livestock panel. After fastening all the accessories, inspect every connection point one by one again to confirm no loose fasteners, complete installation without missing or misplaced accessories.

5. Level & Integrity Check

After the installation of the livestock panel and accessories is completed, a comprehensive level and integrity check is required to ensure that the installation quality meets the standards. First, use a level and plumb line to check the levelness of the livestock panel and the verticality of the posts again: the levelness error of the panel should not exceed 2mm per meter, and the verticality error of the posts should not exceed 3mm in total. Then, check the overall alignment of the fence: the entire fence should be straight, each livestock panel keeps flat and rigid, all welding joints intact, without obvious skew or uneven height difference. At the same time, check the connection firmness of each part: shake the panel moderately to simulate livestock collision, ensure there is no obvious shaking of panels and posts, and all bolts and fixing accessories remain tightly fastened. If any problems are found (such as skew, looseness, uneven gap), adjust them in time: if the posts are skewed, you can chisel the concrete around the posts, adjust the verticality and re-pour the concrete; if the panel is installed unevenly, adjust the fastener position or add gaskets to restore horizontal flatness. In addition, carefully check all welding positions of the livestock panel to ensure no crack or hidden damage, keeping original rigid structural strength.

6. Cleaning & Acceptance

The final step of the installation process is cleaning and acceptance, which ensures the aesthetic appearance of the fence and confirms that the installation is up to standard. First, use a clean cloth or air compressor to remove dust, debris, concrete residues and fingerprints on the surface of the fence posts, livestock panels and fixing accessories, focusing on cleaning welding joints and bolt connection positions, to avoid residual dirt accelerating rust and wear. If there are scratches or stains on the surface of the panel, use professional neutral cleaning agents to clean them (avoid using corrosive cleaning agents to prevent damage to the surface galvanizing or powder coating protective layer). Then, carry out a comprehensive acceptance according to the design drawings and installation standards: check the installation position, post spacing, verticality, levelness and connection firmness of the fence; check whether the surface of the livestock panel is intact, without pipe deformation, welding crack, rust or other defects; check whether the special heavy-duty accessories are complete and installed in place. After the acceptance is qualified, the installation work is officially completed. If unqualified items are found, they should be rectified in time until they meet the acceptance standards.

Note

During the entire installation process, construction personnel should wear protective equipment (such as safety helmets, gloves and safety shoes) to ensure construction safety. In addition, pay attention to the protection of the livestock panel surface and welding joints during installation to avoid collision deformation or damage to the surface anti-corrosion treatment layer (such as galvanizing, spraying), which may affect the corrosion resistance, impact resistance and overall service life of the livestock panel.
