An Industrial Fence for an overseas project is more than just steel panels and posts and price. While selecting the right type of fence for your project is critical, there are several other important details to take into consideration. Industrial Fences are typically used to delimit boundaries for a number of different applications. A boundary fence to a factory is very different from a school fence or sports field fence or even a utility site fence for example.
BENDIN is metal fence manufacturer Anping China, with a 15,000 m² manufacturing facility, more than 80 pieces of machinery, including wire mesh welders, 2m and 3m high quality wire mesh fencing production lines, chain link fence machines, PE coating lines and electrostatic painting lines etc. Products supplied include 3D fence, 2D fence, steel tube fencing, chain link fence, 358 fence, airport fence, electric fence, temporary fence and edge protection fence, along with metal fence gates and associated metal fence accessories. In terms of certification BENDIN hold ISO9001:2015 and CE certification. This gives any overseas buyer a better insight to the quality control and export procedure at BENDIN. For fencing procurement professionals the biggest benefit of BENDIN is that we are a one stop shop for all fencing types and can supply any number of different fence designs for use at fence entrances, around large perimeters, in public view and for high security in interior zones. There are few projects where a single style of fence can be used for every section.
Why Do International Safety Standards Matter for Fence Projects?
When setting safety standards for documents it is also relevant when judging the appropriateness of a fence for people, vehicles, work areas or local project rules. A fence used for access control or site separation can create problems if it is poorly detailed.
Clearer Requirements for Global Buyers
When you buy for Europe, North America, Australia, the Middle East, or other export markets, the first question is usually direct: can this product meet the expected safety level? Certifications such as ISO9001:2015 and CE help show that production and product control are treated seriously.
It is not enough to ask for certificates of inspection. One should also ask for information on material, welding, coating, packing and inspection. The apparent simplicity of a fence in a photo can often be due to small details in the processing.
Safer Boundaries for People and Property
One purpose of a fence is to define spaces. A fence can prevent visitors from entering equipment spaces, can reduce uncontrolled access, can be used to direct vehicle usage, and can mark property boundaries. This is just part of normal safety procedures on industrial sites.
For public spaces the fence line needs to look clean and have safe edge protection. For more private or higher risk areas the fence line may require stronger posts and rails, or the addition of barbed arms, razor wire or controlled gates.
Better Value After Installation
Low price at quotation phase may look attractive at first. However, after installation poor coating, thin posts, loose fittings and bad packing can cost more than quoted price.
It is much better to compare the full specification of the product, i.e. fence height, mesh size, wire diameter, post thickness, rail design, surface finish and accessories. This must all match the site, otherwise it will fail prematurely and require repair or replacement.
What Should You Check Before Choosing an Industrial Fence?
Before selecting a product to use as a fence, it is always best to find out what function the fence will need to perform at your site. Once you have Industrial Fence specifications for your quotation, it will be more accurate and your supplier can recommend an alternative that would be more suitable for your requirements.
Certification and Production Control
Certification is a first filter that is good to check out. ISO9001:2015 indicates that a manufacturer is working with quality management whereas CE marks often help to reassure exports to certain markets. But most important are the means of a manufacturer to control the production of an order.
In addition to verifying raw materials, wire diameter, mesh size, post size, post thickness, coating quality, width, height and packing conditions of finished goods, this is something that can be checked on a regular basis to help avoid future disputes after delivery.
Material Strength and Fence Structure
A good fence starts with a good steel frame. When selecting a steel framed fence check the following; wire gauge, aperture size, post size, rail thickness, frame type, gate size and joint connections.
For very windy sites or even large open areas the use of stronger posts in conjunction with a sound fixing to the post, is vital. For areas leading to the entrance of the site, it is also important to ensure the fence looks neat as it becomes part of the overall site image.
Surface Treatment and Outdoor Durability
In order to ensure that the outdoor fencing is protected for as long as possible, a surface treatment is required. In general, fencing is treated with hot-dip galvanizing, electro galvanizing, powder coating or PE coating. There is a suitable alternative for different weather conditions, budgets or looks.
Coating could be relevant to your project if it is near the coast, in a wet climate or a long-term public use project. It is also worth considering the color of the fence early on in the project as it can be important for it to be a color that is relevant to the project. Colors such as green, black, grey, white and many other RAL colors could be suitable for a fence.

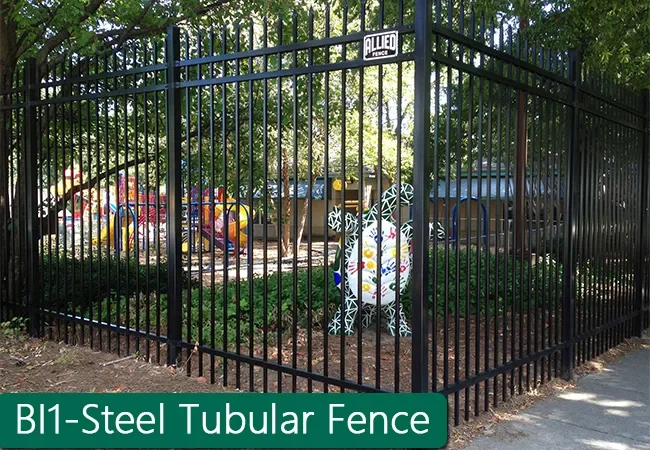

When Should You Use Steel tubular fence for Safer Public Areas?
A site may require security but does not have to look unkempt, Steel tubular fence provides a robust boundary solution that still looks neat from the exterior.
Clean Security for Public and Commercial Areas
The Steel Tubular Fence is suitable for schools, parks, residential areas, villas, commercial properties, public facilities and also for front boundary areas. It gives you clear definition to a boundary without blocking your view.
Heavy mesh is often less desirable than this product when there is pedestrian traffic close to the fence. Heavy mesh looks unfinished compared to this product and is not typical for public-facing applications. This product is vertical picket style fencing.
Multiple Top Designs for Different Safety Needs
Steel tubular fence can be made with a number of top styles including spear top, flat top, aluminum top, bending top, puppy guard, flat blade and vertical blade. These are not just for looks.
A flat top would be suitable for parks and school grounds where a less austere appearance is desired. A spear top or blade type would be more appropriate for warning areas where greater deterrent is required. Ultimately, choice of tip form is determined by the function of the area not purely by personal preference.

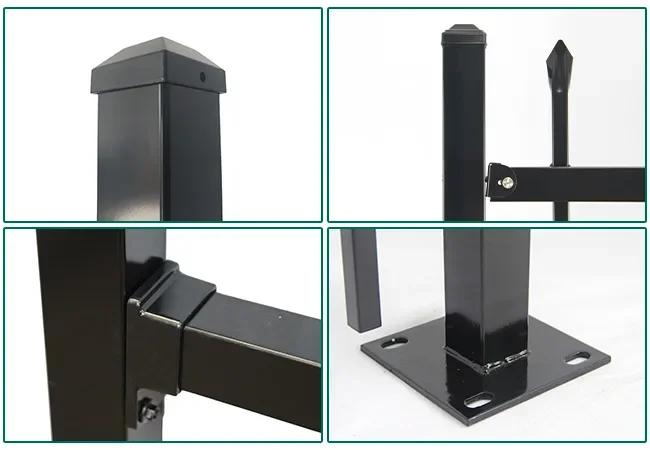

Stable Rails, Pickets, and Post Connections
A picket fence consists of posts, rails, pickets, and connections such as clamps or brackets. The choice of two rails, three rails or four rails depends on the height and strength that you require from your fence.
Before you place an order for your fence make sure you check the following details: the height and width of your panels, the size of the posts, the size of the rails, the picket spacing, the thickness of the tubes and how your fence is to be installed. These details will determine whether your fence feels solid or flimsy after it has been put up.

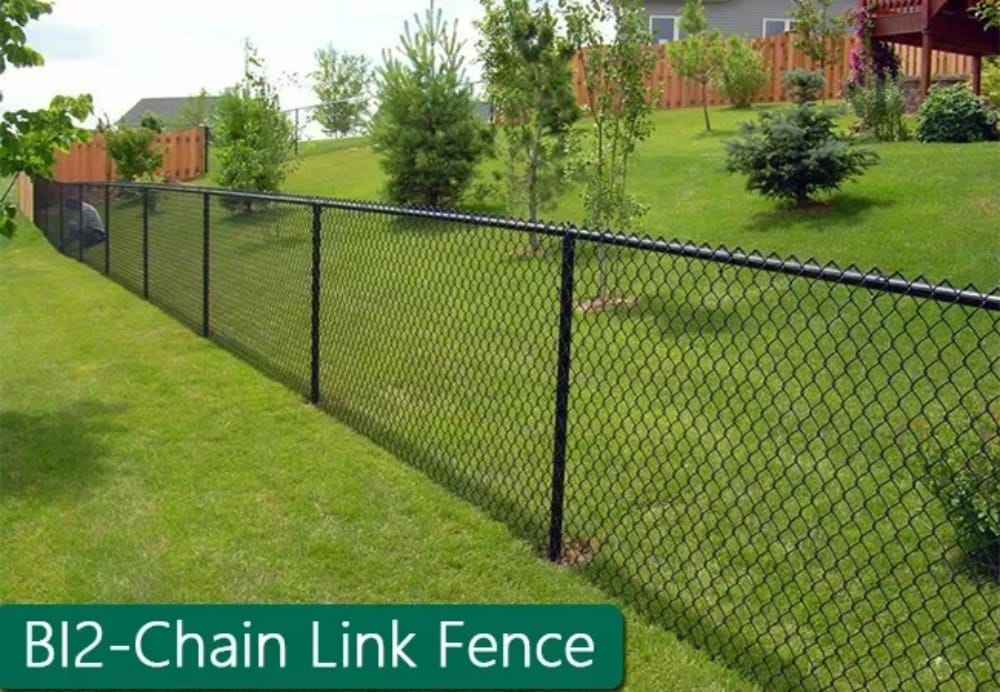

Why Is Chain Link Fence Often the Safer Choice for Large Sites?
Chain Link Fence is usually the more sensible choice for very large boundaries, since it provides good coverage, excellent visibility and a variety of different ways in which to beef up the security as required. And for large Industrial Fence orders it is also very cost effective.
Flexible Coverage for Wide Perimeters
Chain Link Fence is a very popular type of fence for use in industrial areas such as warehouses, farms, parks, utility areas, sports grounds and general open land. It is cost effective for long fence lines as it is not overly heavy to handle.
Many contractors use this type of fencing as they consider it to be very easy to use and very adaptable to site conditions. It may not look as impressive as Steel tubular fence but it is a very useful product.
Open Mesh Design for Visibility and Airflow
The open mesh design is the best feature of the fence. As well as allowing security personnel to see through the fence the open mesh design allows for better airflow and better handling of wind than a solid panel fence.
For sports grounds, parks and industrial yards it is useful to be able to close off part of a site without closing off the whole of the site. Such areas can be easily separated and viewed from elsewhere on the site.
Upgrade Options for Higher Security Levels
Chain Link Fence can be supplied with post + fence, post + rail + fence, single gate, double gate, sliding gate, single arm, double arm, barbed wire, razor wire, etc. Many fittings are available, including different mesh edge styles, i.e. twisted or knuckle etc.
A simple fence boundary can be comprised of simple fence posts and mesh fence. A stronger perimeter fence can be enhanced with addition of rails, barbed arms, razor wire, etc. or even just larger perimeter fence posts. Chain Link Fences are used in many export fence projects around the world, primarily due to their ability to be made as simple or as strong as is required.
How Can You Confirm Quality Before Shipment?
An order of an Industrial Fence is usually put together with a clear check list. There is no need to check each and every technical data, but it is important to check the parts that are crucial for the assembling as well as for the service life of the fence.
Dimension and Structure Inspection
Checks for steel mesh fencing include wire diameter, mesh size, panel width, panel height, post size, post thickness, rail size and tube thickness. Checks for Chain Link Fence rolls include roll height, roll length, mesh size, wire diameter, rail size, post size and fittings.
When shopping for a Steel tubular fence, make sure you pay attention to the Post size, the Rail thickness, the Picket spacing, the Top design, and the connection type. Most pictures do not highlight these critical features.
Coating and Corrosion Resistance Checks
Coating quality influences the outdoor life of steel items. Tests for the zinc coating, measurements of the coating thickness, a check of the powder coating finish and the surface smoothness should be performed before the items are shipped.
Do you need a color? Then it is best to ask for the RAL number. If you are enforcing an appearance specification then it is best to request photos or samples prior to going into full production.
Packing, Delivery, Service, and Contact
For export fence orders it is important to pack well. Usually fence panels are packed on wooden pallets, on metal pallets, in bulk or with plastic film. Small accessories are packed in cartons, longer posts are even packed separately.
Also check the delivery time and the loading plan as well as the after sales service before placing your order. If you are ordering different types of fences within one project, prepare drawings, quantities, colors and a schedule and send them via the contact page of this website. This will save time and prevent any parts from getting lost.
Industrial Fences need to meet more than the first quote sheet, they need to work on the actual site, easily install and last for years in the elements. We recommend Steel tubular fence for public boundary fences and Chain Link Fence for wider site boundaries and general site control.
FAQ
Q1: What are the first things to check when selecting an industrial fence?
A1: To compare prices for fences you should first specify the use of the site, the fence height, the safety level, the material thickness, the surface treatment, the gate requirements and the certification required.
Q2. Chain Link Fence: Industrial Boundaries?
A2: Chain Link Fence is suitable for industrial zones, warehouses, farms, parks, sports grounds and utility areas. The Chain Link Fence provides wide coverage, visibility and flexibility for any security upgrades that may be needed.
Q3: When Is Steel tubular fence a Better Choice?
A3: Steel tubular fence is better for schools, parks, residential areas, commercial entrances and other public-facing sites where appearance and control are important.
Q4: Why Surface Treatment of Steel Fencing is Important?
A4: Surface treatment is important to prevent rust and to make articles last longer even when they are exposed to outdoors. By hot-dip galvanizing, electro galvanizing, powder coating and PE coating, the treated articles can last longer.
Q5: What are the key details you would need to provide to receive a more accurate quotation for your fence?
A5: Calculate the total fence length and add in other details such as fence height, mesh size, post type and other details. Then add in the number of gates required, color, type of coating and how you would like items to be packed and what the delivery schedule is. This will enable supplier to recommend a correct system.
