Welded Gabion Mesh for Infrastructure Projects: Specifications and Applications
Welded gabion mesh is used in civil engineering, erosion control, riverbank protection and landscape construction. Manufactured by joining intersecting steel wires through resistance welding, it provides a regular mesh pattern that can be assembled into stone-filled baskets and protective structures.
For international infrastructure projects, product selection involves more than mesh dimensions. Wire specifications, weld quality, corrosion protection, connection details, stone grading and installation conditions all influence the suitability of the finished structure.
Bendin (Hebei Bendin Industrial Technology Co., Ltd.) supplies customizable welded gabion mesh products for infrastructure, water management and landscape projects. Available configurations can be discussed according to mesh opening, wire diameter, panel dimensions, coating system, connection accessories and project-specific requirements.
This guide explains the structure, specifications, corrosion protection and engineering applications of welded gabion mesh, with particular attention to the information international buyers should confirm before ordering.

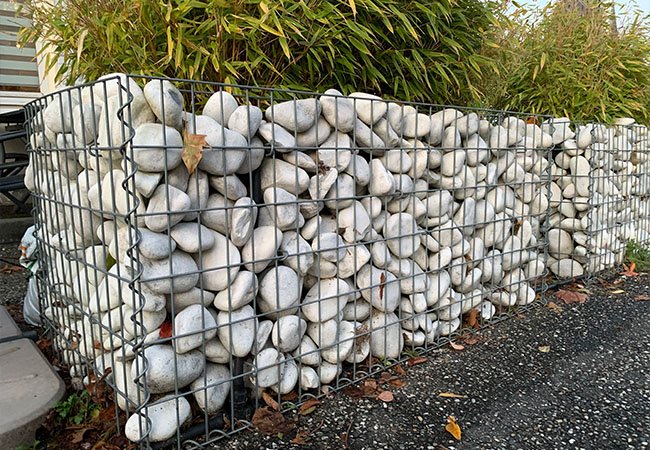

1. What Is Welded Gabion Mesh?
Welded gabion mesh is a steel wire grid manufactured by joining intersecting wires through resistance welding. The panels are assembled into three-dimensional containers and filled with suitable stone or other approved materials.
The resulting structures may be used for selected retaining applications, riverbank protection, slope stabilization and landscape engineering.
A typical welded gabion system may include:
- Welded steel mesh panels
- Bottom, side and end panels
- Internal diaphragms where required
- Connection spirals, clips or approved fasteners
- Binding wire where specified
- Stone filling
- Foundation and drainage components where required
The mesh retains the filling material, while the stone contributes mass and supports the performance of the completed structure.
The suitability of a gabion system depends on the mesh specification, weld quality, connections, stone grading, foundation conditions, drainage and engineering design.
2. How Welded Gabion Mesh Is Manufactured
Welded gabion mesh is commonly manufactured using automated resistance welding equipment.
The process joins intersecting steel wires to create a regular grid. Panels are then cut to the required dimensions and prepared for assembly into baskets or other specified structures.
Wire Positioning
Longitudinal and transverse wires are arranged according to the approved mesh design.
Resistance Welding
Electrical current and applied pressure create welded intersections between the wires.
Panel Fabrication
The mesh is prepared to the specified dimensions, with appropriate edges and connection points.
Surface Treatment
Depending on the manufacturing route, the wire or fabricated components may receive a specified metallic coating or other compatible surface treatment.
The sequence of welding, coating and assembly should be confirmed because it affects the finished product and the protection provided at welded intersections.
3. Typical Welded Gabion Mesh Specifications
Bendin can discuss customized configurations according to product drawings and engineering requirements.
| Parameter | Typical Options |
|---|---|
| Product Type | Welded Gabion Mesh / Welded Gabion Basket |
| Material | Low-Carbon Steel Wire |
| Mesh Structure | Resistance-Welded Steel Grid |
| Mesh Opening | Common options may include 50 × 50 mm, 75 × 75 mm and 100 × 100 mm, subject to design |
| Wire Diameter | Project-specific |
| Panel Length | Customized |
| Panel Width | Customized |
| Basket Length | Customized |
| Basket Width | Customized |
| Basket Height | Customized |
| Internal Diaphragms | Optional according to basket design |
| Surface Treatment | Hot-Dip Galvanized / Zinc-Aluminum Alloy / Other Specified Coating |
| Connections | Spirals / Clips / Approved Fasteners |
| Filling Material | Suitable Natural Stone or Approved Aggregate |
| Packaging | Folded Panels / Components / Project-Specific Bundles |
These are indicative configuration options rather than a fixed specification for every product. Actual mesh openings, wire diameters, coating characteristics, panel dimensions and connection details should be confirmed before ordering.
4. Main Advantages of Welded Gabion Mesh
Regular Mesh Openings
Resistance welding can produce a consistent grid pattern with defined mesh openings.
Uniform panel geometry helps simplify assembly and supports a regular finished appearance.
Defined Panel Geometry
Rigid mesh panels create a clearly defined container shape.
This can be useful when a project requires consistent basket dimensions and an orderly finished appearance.
Modular Assembly
Individual panels can be connected to form baskets of different dimensions.
Modular construction can support transportation planning, on-site assembly and component replacement where the design allows.
Customizable Configurations
Mesh opening, wire diameter, panel dimensions, basket arrangement and coating system can be selected according to project requirements.
The correct configuration should be determined by the engineering design, filling material and site conditions rather than mesh size alone.
5. Corrosion Protection for Infrastructure Projects
Welded gabion mesh may be exposed to rain, soil moisture, freshwater, coastal conditions and other environmental factors.
The appropriate coating system depends on the wire specification, manufacturing process and expected exposure.
Hot-Dip Galvanizing
Hot-dip galvanizing provides a zinc coating that helps protect steel against corrosion.
The required coating specification should be confirmed for the relevant product and manufacturing process.
Zinc-Aluminum Alloy Coating
Zinc-aluminum alloy coatings, including Galfan-type systems, may provide enhanced corrosion performance compared with conventional zinc coatings in suitable environments.
They can be considered for projects requiring additional corrosion protection.
Additional Polymer Coating
A polymer coating may be considered for selected products where additional surface protection or a particular appearance is required.
Its compatibility with the underlying metallic coating, welding process and intended environment should be confirmed.
Selecting the Right Coating
Coating selection should consider:
- Freshwater or coastal exposure
- Soil chemistry
- Expected service period
- Wire specification
- Applicable product standard
- Maintenance requirements
A claim of C5-M suitability, a specified salt-spray result or a 50-year service life should only be used when supported by the relevant product specification and appropriate performance evidence.
6. Welded Gabion Mesh vs. Woven Gabion Mesh
Welded and woven gabion systems are both used for stone-filled engineering structures, but their construction and behavior differ.
| Feature | Welded Gabion Mesh | Woven Gabion Mesh |
|---|---|---|
| Manufacturing | Resistance-welded panels | Double-twist wire weaving |
| Mesh Pattern | Usually square or rectangular | Hexagonal |
| Panel Geometry | Rigid and regular | More flexible |
| Local Deformation | More limited at welded intersections | Can accommodate some local movement |
| Assembly | Rigid panels connected into baskets | Woven mesh folded and connected |
| Appearance | Regular geometric grid | Traditional woven texture |
| Typical Applications | Selected retaining structures, landscaping and erosion control | Riverbanks, irregular terrain and erosion control |
| Main Selection Factor | Defined geometry and panel rigidity | Flexibility and deformation requirements |
Neither system is automatically better for every project. Selection should reflect foundation conditions, expected movement, filling material, hydraulic loading and engineering requirements.
7. Welded Gabion Mesh for Riverbank Protection
Riverbanks may be exposed to changing water levels, current forces, surface erosion and localized scour.
Gabion structures can be considered where a stone-filled system is appropriate for protecting exposed soil and stabilizing the riverbank surface.
Potential benefits include:
- Protecting exposed soil from direct water action
- Providing a stone-filled protective structure
- Allowing water to pass through the spaces between stones
- Supporting modular construction along the bank
- Accommodating some local movement when correctly designed
The project team should evaluate water velocity, flood levels, scour depth, foundation conditions, stone grading, toe protection and any filter or geotextile requirements.
Welded gabion mesh alone does not guarantee riverbank stability. The complete structure must be designed for the hydraulic and geotechnical conditions of the site.
8. Welded Gabion Mesh for Slope Stabilization
Slope-protection projects often need to manage surface runoff, soil erosion and localized ground movement.
Welded gabion structures may be incorporated into suitable retaining or erosion-control systems.
Potential applications include:
- Roadside slopes
- Highway embankments
- Drainage channels
- Hillside developments
- Landscape retaining structures
- Erosion-prone areas
Depending on the project, gabions may be combined with geotextiles, drainage layers, vegetation and engineered foundations.
The final design should account for soil properties, slope geometry, groundwater conditions, foundation stability and drainage.
9. Selecting Welded Gabion Mesh for European and US Projects
International projects may have different procurement requirements, technical specifications and documentation expectations.
Before ordering welded gabion mesh, buyers should confirm the project specification and the standards applicable to the intended use.
Confirm the Product Category
Determine whether the project requires welded gabion mesh panels, complete gabion boxes or another type of wire mesh product.
The product description and quotation should clearly identify the supplied components.
Confirm the Technical Specification
The procurement documents should identify:
- Mesh opening
- Wire diameter
- Material requirements
- Panel and basket dimensions
- Coating system
- Connection accessories
- Inspection requirements
- Packaging requirements
Confirm Applicable Standards
The relevant standard depends on the product category and project requirements.
A general claim that a product complies with “ASTM standards” or holds CE certification is not sufficient. The specific standard, applicable product, supporting documentation and any required assessment should be confirmed.
Confirm Project Documentation
For international projects, the buyer may request material information, dimensional inspection records, coating data, test reports and installation documentation.
The exact documentation package should be agreed before production.
10. Welded Gabion Mesh for Coastal and High-Moisture Environments
Coastal and high-moisture environments can increase corrosion exposure because of salt, humidity and prolonged wetting.
When selecting welded gabion mesh for these conditions, consider:
- Base steel specification
- Metallic coating type
- Coating thickness or mass
- Welded-area protection
- Stone and soil conditions
- Installation details
- Inspection and maintenance requirements
The complete coating system should be selected according to the project environment.
A coastal application does not automatically require the same coating specification in every location. The appropriate system should be determined from the exposure conditions and engineering requirements.
11. Illustrative Project Example: Riverbank Protection
A riverbank project requires a stone-filled protective structure along an exposed section of the bank.
The project team considers welded gabion boxes because regular panel dimensions and modular assembly may suit the proposed design.
Preliminary Configuration
| Item | Example Requirement |
|---|---|
| Application | Riverbank Protection |
| Mesh Type | Welded Gabion Box |
| Mesh Opening | Selected according to stone grading |
| Wire Coating | Galvanized or Zinc-Aluminum Alloy |
| Basket Dimensions | Determined by engineering design |
| Internal Diaphragms | According to basket length and design |
| Filling | Suitable Natural Stone |
| Foundation | Prepared according to site conditions |
| Additional Components | Filter Layer / Geotextile / Connection Accessories where specified |
The project engineer should evaluate water velocity, flood levels, scour depth, foundation conditions, stone grading and the required coating system before finalizing the configuration.
This is an illustrative project scenario, not a completed Bendin customer installation.
12. Quality Control
Quality control should focus on the mesh structure, weld quality, coating, dimensions and connection integrity.
Inspection may include:
- Wire diameter measurement
- Mesh opening inspection
- Panel dimensions
- Weld appearance and integrity
- Edge wire inspection
- Coating inspection
- Basket dimensions
- Diaphragm and connection verification
- Packaging inspection
For engineering projects, the applicable product standard, inspection methods and acceptance criteria should be agreed before production.
13. Bendin Custom Welded Gabion Mesh Solutions
Bendin supports customized welded gabion mesh production according to project requirements.
Customization may include:
- Mesh opening
- Wire diameter
- Panel dimensions
- Basket length, width and height
- Diaphragm arrangement
- Coating type
- Connection accessories
- Packaging
- OEM requirements
Customers can provide drawings, quantities, material requirements and destination details for review before ordering.
For large projects, a detailed bill of materials can help coordinate mesh panels, baskets, diaphragms, connection accessories and packaging.
14. Frequently Asked Questions
What is welded gabion mesh used for?
Welded gabion mesh is commonly used for selected retaining structures, riverbank protection, slope stabilization, erosion control and landscape construction.
Is welded gabion mesh suitable for European and US projects?
It may be suitable when the product specification, coating, engineering design and documentation meet the applicable project requirements.
Does exporting to Europe or the United States mean the product is CE-certified?
No. Export destination alone does not establish certification. Any certification claim must be supported by the relevant certificate or conformity documentation.
Can welded gabion mesh be supplied with Galfan coating?
Zinc-aluminum alloy coating options can be discussed according to product design and manufacturing availability.
Can Bendin customize mesh dimensions and coating systems?
Yes. Available options depend on the product design and manufacturing capabilities. Buyers should provide the project specification before ordering.
Does welded gabion mesh have a fixed 50-year service life?
No universal service life applies to every product and environment. Performance depends on the coating, site conditions, installation, maintenance and engineering design.
15. Request a Welded Gabion Mesh Quotation
Welded gabion mesh combines a rigid welded grid with stone filling to provide a practical option for selected retaining structures, riverbank protection, slope stabilization and landscape engineering.
The most suitable system depends on mesh specifications, weld quality, coating, basket dimensions, stone grading, foundation and drainage design.
Bendin supplies customizable welded gabion mesh products for international distributors, contractors and civil engineering projects.
For a quotation, provide:
- Project application
- Mesh opening
- Wire diameter
- Coating requirement
- Panel or basket dimensions
- Diaphragm requirements
- Stone size
- Applicable project specification
- Quantity
- Project location and destination
Bendin can review your requirements and discuss a suitable welded gabion mesh configuration for your proje
