Welded Gabion Boxes: Dimensions, Assembly and Engineering Applications

Welded gabion boxes are three-dimensional steel mesh containers designed to hold stone or other approved filling materials for civil engineering, erosion control and landscape construction. They are commonly considered for riverbank protection, slope stabilization, retaining structures and selected drainage projects.

Unlike woven gabion baskets made from double-twist hexagonal mesh, welded gabion boxes use rigid mesh panels joined by resistance welding. This construction provides regular mesh openings, defined box geometry and a consistent appearance, making the boxes convenient to assemble and position on site.

Bendin (Hebei Bendin Industrial Technology Co., Ltd.) supplies customizable welded gabion mesh products and box configurations for infrastructure, landscape and engineering projects. Available options can be discussed according to mesh opening, wire diameter, coating system, box dimensions, diaphragms and connection accessories.

This guide explains welded gabion box construction, typical specifications, corrosion protection, assembly procedures and practical selection considerations.

1. What Is a Welded Gabion Box?

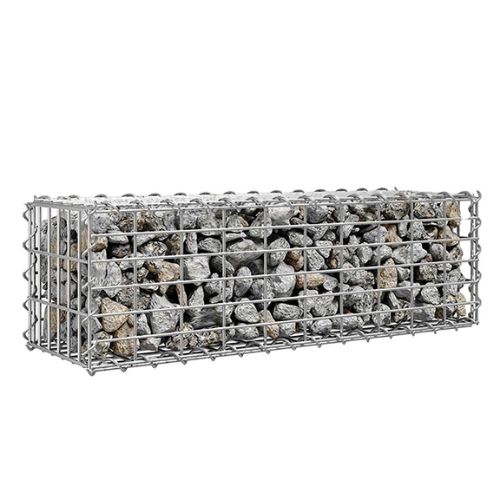

A welded gabion box is a mesh container assembled from welded steel wire panels and filled with suitable stone or other specified material.

The panels are joined to form the bottom, sides, ends and lid of the box. Internal diaphragms may be included to divide the container into sections and help maintain its shape.

A typical system may include:

• Welded steel mesh panels
• Bottom, side and end panels
• Internal diaphragms
• Connection spirals, clips or approved fasteners
• Binding wire where specified
• Stone filling
• Foundation and drainage components where required

The mesh retains the filling material, while the stone provides mass and contributes to the performance of the completed structure.

The finished structure’s suitability depends on the mesh specification, weld quality, connections, stone grading, foundation conditions, drainage and engineering design.

2. How Welded Gabion Boxes Are Manufactured

Welded gabion boxes are commonly manufactured using resistance welding to join intersecting steel wires into a regular mesh pattern.

The mesh panels are then cut or prepared to the required dimensions and assembled into three-dimensional containers using compatible connections.

Resistance Welding

Resistance welding joins intersecting wires through electrical current and applied pressure.

Consistent production settings can help maintain regular mesh openings and repeatable panel dimensions.

Panel Fabrication

Mesh panels are prepared according to the specified box dimensions, with appropriate edges and connection points.

Box Assembly

The panels are connected to form the bottom, sides, ends and lid. Internal diaphragms are installed where required by the design.

Surface Treatment

Depending on the manufacturing route, the steel wire or fabricated components may receive a specified metallic coating or other compatible surface treatment.

The sequence of welding, coating and assembly should be confirmed because it affects the finished product and the protection provided at welded intersections.

3. Typical Welded Gabion Box Specifications

Bendin can discuss customized configurations according to project drawings and manufacturing capabilities.

These are indicative options rather than a fixed product specification. Final mesh openings, wire diameters, box dimensions, coating characteristics and connection details should be confirmed before ordering.

4. Main Advantages of Welded Gabion Boxes

Regular Mesh Openings

Automated resistance welding can produce consistent openings and repeatable panel dimensions.

This helps simplify box assembly and supports a regular finished appearance.

Defined Box Geometry

Rigid mesh panels create a clearly defined container shape.

This can be useful when a project requires consistent basket dimensions and organized placement.

Modular Assembly

Individual panels can be connected to form boxes of different dimensions.

Modular construction can support transportation planning, on-site assembly and replacement of individual components where the design allows.

Flexible Project Configuration

Mesh opening, wire diameter, box dimensions and diaphragm arrangements can be selected according to project requirements.

The correct configuration should be determined by the structural design, filling material and site conditions rather than mesh size alone.

5. Welded Gabion Boxes vs. Woven Gabion Baskets

Welded and woven gabion systems are both used for stone-filled engineering structures, but their construction and behavior differ.

Neither system is automatically better for every project. Selection should reflect the foundation conditions, expected movement, filling material, hydraulic loading and engineering requirements.

6. Selecting Mesh Opening and Wire Diameter

Mesh opening and wire diameter affect stone retention, material use and the behavior of the completed box.

Mesh Opening

The opening should be compatible with the size and grading of the filling material.

If the stones are too small relative to the mesh openings, material may escape or become unstable. The selected opening must therefore be considered alongside the stone grading and basket design.

Wire Diameter

Wire diameter affects material consumption and contributes to the stiffness of the mesh panel.

However, a larger wire diameter alone does not establish the performance of the complete gabion structure.

Weld quality, panel dimensions, connections, stone filling and foundation conditions also matter.

Internal Diaphragms

Internal diaphragms may be used to divide longer boxes into compartments.

Their number and position should follow the box design and applicable engineering requirements.

7. Corrosion Protection for Welded Gabion Boxes

Gabion boxes may be exposed to rain, soil moisture, freshwater, coastal conditions and other environmental factors.

The appropriate coating depends on the wire specification, manufacturing process and expected exposure.

Hot-Dip Galvanizing

Hot-dip galvanizing provides a zinc coating that helps protect steel against corrosion.

The required coating specification should be confirmed for the relevant product and manufacturing process.

Zinc-Aluminum Alloy Coating

Zinc-aluminum alloy coatings, including Galfan-type systems, may provide enhanced corrosion performance compared with conventional zinc coatings in suitable environments.

They can be considered for projects requiring additional corrosion protection.

Additional Polymer Coating

A polymer coating may be considered for selected products where additional surface protection or a particular appearance is required.

Its compatibility with the underlying metallic coating and intended environment should be confirmed.

Selecting the Right Coating

Coating selection should consider:

• Freshwater or coastal exposure
• Soil chemistry
• Expected service period
• Wire specification
• Applicable product standard
• Maintenance requirements

Claims such as C5-M suitability, a specified salt-spray result or a 50-year service life should only be used when supported by the relevant product specification and appropriate performance evidence.

8. Welded Gabion Boxes for Riverbank Protection

Riverbanks may be exposed to changing water levels, current forces, surface erosion and localized scour.

Gabion structures can be considered where a stone-filled system is appropriate for protecting exposed soil and stabilizing the riverbank surface.

Potential benefits include:

• Protecting exposed soil from direct water action
• Providing a stone-filled protective structure
• Allowing water to pass through the spaces between the stones
• Supporting modular construction along the bank
• Accommodating some local movement when correctly designed

The project team should evaluate water velocity, flood levels, scour depth, foundation conditions, stone grading, toe protection and any filter or geotextile requirements.

Welded gabion boxes alone do not guarantee riverbank stability. The complete structure must be designed for the hydraulic and geotechnical conditions of the site.

9. Welded Gabion Boxes for Slope Stabilization

Slope-protection projects often need to manage surface runoff, soil erosion and localized ground movement.

Welded gabion boxes may be incorporated into suitable retaining or erosion-control systems.

Potential applications include:

• Roadside slopes
• Highway embankments
• Drainage channels
• Landscape retaining structures
• Hillside developments
• Erosion-prone areas

Depending on the project, gabions may be combined with geotextiles, drainage layers, vegetation and engineered foundations.

The final design should account for soil properties, slope geometry, groundwater conditions, foundation stability and drainage.

10. Welded Gabion Boxes for Landscaping

Welded gabion boxes can also be used for selected landscape and architectural projects where a stone-filled structure with a regular geometric appearance is required.

Potential applications include:

• Decorative retaining walls
• Garden features
• Landscape partitions
• Public-space structures
• Selected drainage and erosion-control features

The box dimensions, stone type, filling arrangement and surface appearance should be coordinated with the landscape design.

For decorative installations, the visible stone faces may require more careful placement than hidden structural sections.

Where the project requires a lightweight decorative fence rather than a stone-filled structure, a dedicated welded mesh fence may be more appropriate.

11. Stone Filling and Drainage Considerations

Stone filling is an essential part of a gabion box.

Suitable stone should have appropriate strength, durability and grading for the intended application.

Before selecting the filling material, consider:

• Particle-size distribution
• Material strength and durability
• Compatibility with the mesh opening
• Resistance to the expected environment
• Availability and transport costs
• Project-specific environmental requirements

For hydraulic structures, stone grading and basket design must be compatible with the expected water flow and potential scour conditions.

Drainage and filter requirements should be determined by the project design. A permeable gabion does not eliminate the need to evaluate soil migration, foundation drainage or potential scour.

12. Assembly and Installation Process

A typical welded gabion box installation includes the following steps.

Step 1: Prepare the Foundation

Prepare the foundation according to the engineering design. Install any specified filter layer or geotextile before placing the gabion.

Step 2: Unfold the Components

Lay out the bottom, side, end and diaphragm panels on a suitable working surface.

Step 3: Assemble the Box

Connect the panels using the specified spirals, clips or approved fasteners.

Step 4: Install the Diaphragms

Fit internal diaphragms where required by the box design.

Step 5: Position the Box

Place the assembled box at the designed location and align it with adjacent units.

Step 6: Fill with Stone

Fill the box using suitable stone. The filling method should minimize excessive voids and avoid distorting the panels.

Step 7: Close and Secure the Lid

After checking the box dimensions and filling arrangement, close and secure the top panel.

Step 8: Connect Adjacent Units

Connect neighboring boxes where required to create a continuous structure.

Step 9: Inspect the Installation

Check alignment, connections, stone containment and conformity with the approved drawings.

The actual installation procedure may vary according to box dimensions, site access and engineering requirements.

13. Illustrative Project Example: Riverbank Protection

A riverbank project requires a stone-filled protective structure along an exposed section of the bank.

The project team considers welded gabion boxes because regular panel dimensions and modular assembly may suit the proposed engineering design.

Preliminary Configuration

The project engineer should evaluate water velocity, flood levels, scour depth, foundation conditions, stone grading and the required coating system before finalizing the configuration.

This is an illustrative project scenario, not a completed Bendin customer installation.

14. Quality Control

Quality control should focus on the mesh structure, weld quality, coating, box dimensions and connection integrity.

Inspection may include:

• Wire diameter measurement
• Mesh opening inspection
• Panel dimensions
• Weld appearance and integrity
• Edge wire inspection
• Coating inspection
• Box dimensions
• Diaphragm and connection verification
• Packaging inspection

For engineering projects, the applicable product standard, inspection methods and acceptance criteria should be agreed before production.

15. Bendin Custom Welded Gabion Box Solutions

Bendin supports customized welded gabion box production according to project requirements.

Customization may include:

• Mesh opening
• Wire diameter
• Panel dimensions
• Box length, width and height
• Diaphragm arrangement
• Coating type
• Connection accessories
• Packaging
• OEM requirements

Customers can provide drawings, quantities, material requirements and destination details for review before ordering.

For large projects, a detailed bill of materials can help coordinate box dimensions, diaphragm quantities, connection accessories and packaging.

16. Frequently Asked Questions

What is a welded gabion box used for?

Welded gabion boxes are commonly used for selected retaining structures, riverbank protection, slope stabilization, erosion control and landscape construction.

What is the difference between a welded gabion box and a woven gabion basket?

A welded gabion box uses rigid mesh panels with welded intersections. A woven gabion basket uses double-twist mesh and can accommodate a degree of local movement.

Can welded gabion boxes be galvanized?

Yes. Galvanized and zinc-aluminum alloy coating options can be discussed according to product design and project requirements.

How are welded gabion boxes filled?

The boxes are assembled, positioned and filled with suitable stone according to the approved installation method and engineering design.

Can Bendin customize box dimensions?

Yes. Mesh openings, wire diameters, box dimensions, diaphragms and connection accessories can be discussed according to project specifications.

Does Bendin supply stone filling?

Stone supply depends on the project location and transport economics. For many international projects, locally sourced stone is more practical than shipping heavy filling materials over long distances.

17. Request a Welded Gabion Box Quotation

Welded gabion boxes combine rigid welded mesh panels with stone filling to provide a practical option for selected retaining structures, riverbank protection, slope stabilization and landscape construction.

The most suitable system depends on mesh specifications, weld quality, coating, box dimensions, stone grading, foundation and drainage design.

Bendin supplies customizable welded gabion mesh products and box configurations for international distributors, contractors and civil engineering projects.

For a quotation, provide:

• Project application
• Mesh opening
• Wire diameter
• Coating requirement
• Box dimensions
• Diaphragm requirements
• Stone size
• Quantity
• Project location and destination

Bendin can review your requirements and discuss a suitable welded gabion box configuration for your project.
