Hexagonal Wire Mesh: Structure, Specifications and Applications

Hexagonal wire mesh is a woven steel wire product used in selected fencing, landscaping, agricultural and engineering applications. Its interconnected wire structure provides flexibility and allows the mesh to be supplied in rolls or formed into specific configurations according to the intended use.

Depending on the wire diameter, mesh opening, coating and construction method, hexagonal wire mesh can be used for different purposes. Double-twist hexagonal mesh is commonly associated with gabion structures and erosion-control applications, while other hexagonal wire products may be used for enclosures, agricultural fencing and general mesh applications.

Bendin (Hebei Bendin Industrial Technology Co., Ltd.) supplies customized wire mesh products for international customers, with options for wire diameter, mesh opening, surface treatment, dimensions and packaging.

This guide explains the construction, specifications, surface treatments and application considerations for hexagonal wire mesh.

1. What Is Hexagonal Wire Mesh?

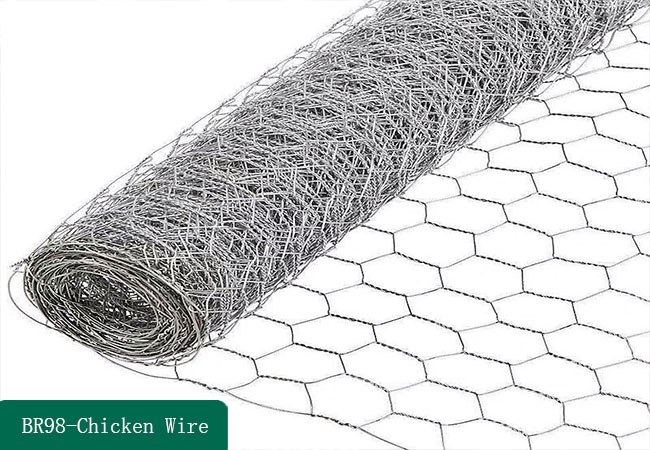

Hexagonal wire mesh is manufactured by weaving steel wires into a repeating hexagonal pattern.

Depending on the product type, adjacent wires may be twisted together to form a continuous woven structure.

Common configurations include:

• Double-twist hexagonal mesh
• Galvanized hexagonal wire mesh
• PVC-coated hexagonal wire mesh
• Customized mesh for selected enclosures
• Hexagonal mesh used in gabion systems

The mesh structure provides flexibility and can accommodate a degree of local deformation, depending on the weaving method and wire specification.

The appropriate product should be selected according to its intended application. Hexagonal mesh for a stone-filled gabion structure may have different requirements from mesh used for an animal enclosure or decorative boundary.

2. Double-Twist Hexagonal Mesh Structure

Double-twist hexagonal mesh is formed by twisting adjacent wire pairs together to create a continuous hexagonal pattern.

This structure differs from welded wire mesh, which joins intersecting wires through welding.

The woven construction allows the mesh to accommodate some local movement without behaving like a completely rigid welded panel.

Typical considerations include:

• Mesh opening
• Wire diameter
• Number and configuration of twists
• Edge wire construction
• Coating type
• Required dimensions

For engineering applications, the mesh specification must be compatible with the expected loads, filling material and installation conditions.

3. Typical Hexagonal Wire Mesh Specifications

Bendin can discuss customized mesh configurations according to project requirements.

The table provides a specification framework rather than a fixed product catalog. Actual mesh openings, wire diameters and coating requirements should be confirmed before ordering.

4. Surface Treatment Options

Hexagonal wire mesh may be exposed to rain, humidity, soil moisture and other environmental conditions.

The appropriate surface treatment depends on the application and required service conditions.

Galvanized Wire

Galvanized wire has a zinc coating that helps protect the steel substrate against corrosion.

It is commonly considered for general outdoor applications.

Galfan-Coated Wire

Galfan is a zinc-aluminum alloy coating that may provide improved corrosion performance compared with conventional zinc coatings in suitable environments.

It can be considered for applications requiring additional corrosion protection.

PVC-Coated Wire

PVC coating adds an outer polymer layer over the underlying metallic coating.

It may be appropriate for selected decorative, agricultural or outdoor applications where additional surface protection and color options are required.

Coating selection should consider environmental exposure, product construction and the project’s maintenance requirements.

A specific service life should not be promised without supporting product specifications and environmental performance data.

5. Hexagonal Wire Mesh Applications

Landscaping and Garden Projects

Hexagonal mesh products can be considered for selected landscaping and garden applications, depending on the wire structure and intended function.

Possible uses include:

• Decorative mesh features
• Garden enclosures
• Selected boundary structures
• Landscape partitions
• Supporting components for designed mesh structures

For decorative projects, the mesh opening, wire finish and surrounding support structure should be selected to achieve the required appearance.

Animal Enclosures

Suitable hexagonal mesh products can be used for selected animal enclosures.

The required mesh size and wire strength depend on:

• Animal species
• Animal size and behavior
• Required containment
• Predator exposure
• Installation height
• Supporting frame

Not every hexagonal mesh product is suitable for every animal enclosure. The product must be selected for the intended use.

Gabion and Erosion-Control Projects

Double-twist hexagonal mesh is commonly used to manufacture gabion baskets and mattresses.

These structures are filled with suitable stones and may be used for:

• Riverbank protection
• Slope stabilization
• Erosion control
• Retaining structures
• Drainage projects

For these applications, the mesh must be specified according to the engineering requirements, filling material and site conditions.

Sports and Recreational Areas

Sports facilities often use dedicated chain link fencing or welded mesh panels.

Hexagonal wire mesh should only be selected for sports applications when its construction, wire diameter, support arrangement and safety characteristics meet the facility’s requirements.

For tennis courts and similar sports applications, chain link fencing is generally a more recognizable product category than gabion mesh.

6. Hexagonal Mesh vs. Chain Link Fence

Hexagonal wire mesh and chain link fencing can look similar in some photographs, but their weaving patterns and intended uses may differ.

When requesting a quotation, buyers should specify the actual mesh pattern rather than relying only on the general term “diamond mesh.”

7. Selecting the Correct Mesh Opening

Mesh opening affects containment, flexibility, material consumption and the final appearance.

A smaller opening may be required when smaller objects or stones need to be retained.

A larger opening may be appropriate where larger filling materials are used or where a particular visual pattern is required.

The correct opening should be selected according to:

• Intended application
• Wire diameter
• Filling material, where applicable
• Required strength
• Installation method
• Environmental exposure

For gabion structures, the mesh opening must be compatible with the selected stone size. For fencing applications, the opening must meet the containment and safety requirements of the intended use.

8. Wire Diameter and Structural Performance

Wire diameter influences the strength and stiffness of individual wires, but finished mesh performance also depends on the weaving method, wire material, coating and installation.

For gabion applications, the basket structure, connection method, filling material and foundation also affect the performance of the completed system.

For enclosure or boundary applications, the supporting posts and fixing arrangement must be compatible with the selected mesh.

Buyers should therefore specify the complete product configuration rather than choosing a mesh based only on wire diameter.

9. Installation Considerations

Installation methods vary according to the type of hexagonal mesh.

For Roll Mesh Applications

1. Confirm the perimeter and required dimensions.
2. Install suitable support posts or frames.
3. Unroll the mesh carefully.
4. Attach the mesh using appropriate fasteners.
5. Maintain suitable tension where required.
6. Inspect the connections and exposed edges.

For Gabion Applications

1. Prepare the foundation according to the project design.
2. Assemble the mesh basket.
3. Connect the panels and diaphragms.
4. Position the basket.
5. Fill with suitable stone.
6. Secure the lid and adjacent units.
7. Inspect the completed installation.

The appropriate method depends on the product type and project requirements. A gabion installation procedure should not be applied directly to a general fencing mesh.

10. Illustrative Project Example: Landscape Gabion Feature

A landscape project requires a stone-filled feature wall along a garden boundary.

The design team considers a double-twist hexagonal gabion system.

A preliminary configuration may include:

The mesh opening, wire diameter, stone size and basket dimensions should be confirmed before installation.

This is an illustrative project scenario, not a completed Bendin customer project.

11. Quality Control

Quality inspection for hexagonal wire mesh may include:

• Wire diameter measurement
• Mesh opening inspection
• Weaving consistency
• Twist configuration
• Edge wire inspection
• Coating condition
• Roll dimensions
• Packaging inspection

For engineering applications, the applicable product standard and inspection requirements should be established before manufacturing.

12. Bendin Custom Hexagonal Wire Mesh Solutions

Bendin supports customized wire mesh production according to project requirements.

Customization may include:

• Mesh opening
• Wire diameter
• Roll width
• Roll length
• Surface treatment
• Coating color
• Basket dimensions for gabion applications
• Connection accessories
• Packaging
• OEM requirements

Customers can provide technical drawings, reference photographs, samples or application descriptions for review before ordering.

13. Frequently Asked Questions

What is hexagonal wire mesh used for?

Its applications depend on the product construction. Double-twist hexagonal mesh is commonly used for gabion baskets, erosion control and retaining structures, while other hexagonal mesh products may be suitable for selected enclosures.

Is hexagonal wire mesh the same as chain link fence?

No. Chain link fence normally has a diamond-shaped mesh pattern, while hexagonal wire mesh has a hexagonal pattern.

Can double-twist hexagonal mesh be used for riverbank protection?

Yes. It is commonly used for gabion structures in riverbank and erosion-control applications when properly specified and engineered.

Can Bendin customize mesh dimensions?

Yes. Mesh opening, wire diameter, coating and dimensions can be discussed according to manufacturing capabilities and project requirements.

Which coating is suitable for outdoor use?

Galvanized, Galfan and PVC-coated options may be considered depending on the product and environmental exposure. The final choice should be based on the project requirements.

14. Request a Hexagonal Wire Mesh Quotation

Hexagonal wire mesh can serve different purposes depending on its weaving structure, wire dimensions, surface treatment and installation method.

For accurate product selection, buyers should first identify whether they need mesh for gabion structures, general enclosures, agricultural applications or another specific use.

Bendin supplies customized wire mesh products for international customers and can discuss mesh configurations according to project drawings and requirements.

For a quotation, provide:

• Intended application
• Mesh pattern
• Mesh opening
• Wire diameter
• Surface treatment
• Roll or basket dimensions
• Quantity
• Destination country

Bendin can review the requirements and discuss a suitable mesh configuration for your project.
