Double Wire Fence: Double Horizontal Wire Structure, Specifications and Applications
Double wire fencing is a welded steel mesh system designed to provide greater panel rigidity than comparable single-wire mesh configurations. By using paired horizontal wires together with vertical wires, the system creates a reinforced panel structure while maintaining an open appearance.
This combination makes double wire fencing suitable for residential communities, schools, municipal boundaries, commercial properties, industrial parks and selected public infrastructure projects.
Bendin (Hebei Bendin Industrial Technology Co., Ltd.) supplies customizable double wire fence systems for international customers, with options for wire diameter, mesh opening, panel dimensions, post profiles, surface treatment, color and matching gates.
This guide explains the structure, specifications, application scenarios and selection factors for double wire fencing.
1. What Is Double Wire Fence?
Double wire fence is a welded mesh fencing system that uses two horizontal wires at each specified horizontal position, combined with vertical wires.
The paired horizontal wires increase the amount of steel at the reinforced sections and can improve panel rigidity compared with a comparable single-horizontal-wire design.
The finished system typically consists of:
- Double horizontal wire mesh panels
- Vertical welded wires
- Steel support posts
- Panel connection clips
- Bolts and fixing accessories
- Optional pedestrian gates
- Optional vehicle gates
- Galvanized or coated finishes
The exact wire arrangement depends on the product design. Buyers should confirm the horizontal and vertical wire diameters from the technical drawing rather than relying on the general product name alone.
2. Main Advantages of Double Wire Fence
Reinforced Panel Rigidity
The paired horizontal wires provide additional reinforcement along the panel.
This can help maintain panel geometry under normal service conditions when the mesh, posts, connections and foundations are correctly specified.
The actual structural performance depends on wire dimensions, mesh opening, weld quality, panel span, post spacing and installation conditions.
Open Visibility
The welded mesh structure allows light and air to pass through the fence.
It also provides visibility across the boundary, which is useful for schools, residential communities, parks and commercial properties.
Consistent Appearance
Automated welding helps produce uniform mesh openings and regular panel geometry.
The clean grid pattern is suitable for modern architectural and municipal projects.
Modular Installation
Panels can be connected to compatible posts using specified clips or fasteners.
The modular arrangement simplifies project layout and allows individual panels to be replaced when necessary.
Customizable Finish
Different coating systems and colors can be selected according to the application, surrounding architecture and environmental exposure.
3. Double Wire Fence Specifications
Bendin can discuss customized configurations according to project drawings and technical requirements.
| Parameter | Typical Options |
|---|---|
| Product Type | Double Wire Mesh Fence |
| Material | Low-Carbon Steel Wire |
| Horizontal Wires | Double-Wire Reinforced Configuration |
| Vertical Wires | Welded Steel Wire |
| Wire Diameter | Common configurations include 6/5/6 mm and 8/6/8 mm, subject to specification |
| Mesh Opening | Commonly 50 × 200 mm, with other configurations available |
| Panel Height | Approximately 0.8–2.4 m, customized |
| Panel Width | Approximately 2.0–2.5 m, customized |
| Post Type | Square / Rectangular / Other Compatible Profiles |
| Surface Treatment | Galvanized / Powder Coated / Duplex Coating |
| Common Colors | RAL 6005 / RAL 7016 / RAL 9005 |
| Connection | Clips / Bolted Fixings / Project-Specific |
| Gate Options | Single Swing / Double Swing |
| Customization | Panel / Wire / Post / Color / Gate |
These are representative options, not a fixed specification for every product. Wire diameters, mesh dimensions and post configurations should be confirmed against the actual manufacturing drawing.
4. Understanding Common Wire Configurations
Double wire fencing is often specified by the diameter of the horizontal and vertical wires.
For example, a designation such as 6/5/6 mm commonly indicates two 6 mm horizontal wires with a 5 mm vertical wire. An 8/6/8 mm configuration commonly uses 8 mm horizontal wires and 6 mm vertical wires.
The precise notation should be confirmed with the supplier because product conventions may vary.
6/5/6 mm Configuration
This configuration can be considered for projects requiring a balance between panel rigidity, material consumption and cost.
Potential applications include residential communities, schools and general commercial boundaries, subject to the project specification.
8/6/8 mm Configuration
This heavier configuration uses larger wire diameters and may be considered where greater panel rigidity is required.
The final suitability depends on the mesh opening, panel dimensions, post spacing, foundations and expected loading.
A larger wire diameter alone does not establish compliance with a particular structural or security standard.
5. Double Wire Fence vs. Standard Welded Mesh Fence
| Feature | Double Wire Fence | Standard Welded Mesh Fence |
|---|---|---|
| Horizontal Wires | Paired horizontal wires | Usually single horizontal wires |
| Panel Structure | Reinforced horizontal sections | Standard welded mesh |
| Rigidity | Generally higher for comparable configurations | Depends on wire diameter and design |
| Material Use | Generally higher | Can be lower |
| Appearance | Strong, regular grid pattern | Regular grid pattern |
| Applications | Schools, residential, municipal and industrial boundaries | General perimeter and partition fencing |
| Customization | Available | Available |
The appropriate choice depends on the project’s structural requirements, visual preferences and budget.
6. Surface Treatment and Corrosion Protection
Outdoor fencing may be exposed to rain, humidity, sunlight, pollution and coastal salt.
Bendin can discuss different surface-treatment options according to the project environment.
Hot-Dip Galvanizing
Hot-dip galvanizing provides a zinc coating that helps protect the steel substrate against corrosion.
The coating specification should be selected according to the product design and applicable requirements.
Powder Coating
Powder coating provides a decorative finish and an additional protective layer when applied over an appropriately prepared substrate.
Common color choices include green, anthracite grey and black.
Galvanizing Plus Powder Coating
A duplex coating system combines zinc protection with a powder-coated finish.
It may be selected where the project requires both corrosion protection and a particular appearance.
The expected service life depends on the coating specification, environmental exposure, installation and maintenance. A fixed lifespan should not be promised without supporting evidence.
7. Double Wire Fence Applications
Residential Communities
Double wire fencing can define residential boundaries while maintaining visibility and a clean architectural appearance.
Matching gates and coordinated colors can be used to create a consistent perimeter design.
Schools and Educational Facilities
The rigid welded mesh structure is suitable for selected school boundaries, campus areas and playground enclosures.
The final mesh opening, height and gate configuration should reflect the facility’s safety requirements.
Parks and Municipal Projects
Double wire fencing can be used around green spaces, public facilities, pedestrian areas and municipal properties.
Its modular construction supports standardized layouts across larger projects.
Industrial Parks
Industrial compounds may use double wire fencing for general perimeter separation and boundary definition.
Where enhanced security or impact resistance is required, the complete system should be evaluated against the project’s security and structural specifications.
Commercial Properties
Office parks, warehouses, parking facilities and commercial developments can use double wire mesh to provide boundary separation while maintaining visibility.
8. Post and Connection Options
Posts and connections are important parts of a double wire fence system.
Bendin can discuss compatible configurations according to the project design.

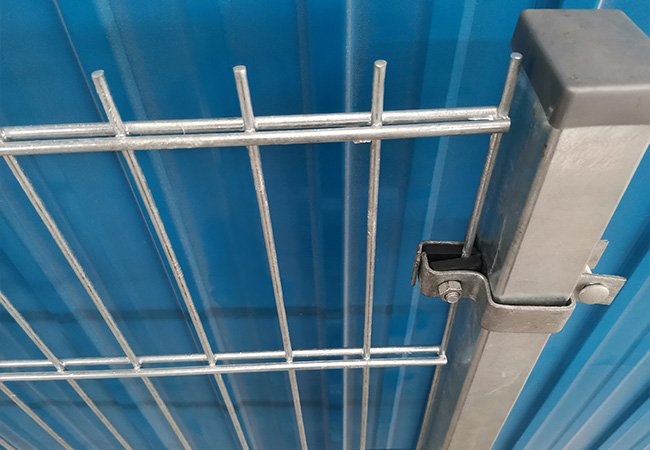

Square Posts
Square posts provide a straightforward configuration for modular welded mesh fencing.
Rectangular Posts
Rectangular posts allow different section dimensions to be selected according to structural and installation requirements.
Other Compatible Posts
Other profiles may be considered where compatible connection details are available.
Panel Fixings
The panel can be attached using suitable clips, brackets or bolted connections.
The fixing method should match the post profile, panel dimensions and required structural performance.
9. Illustrative Project Example: Residential Community
A residential development requires a 500-meter perimeter fence around shared outdoor areas.
The project team wants a durable mesh structure with a consistent architectural appearance and matching pedestrian gates.
Preliminary Configuration
| Item | Example Requirement |
|---|---|
| Application | Residential Community |
| Total Perimeter | 500 m |
| Fence Height | 1.8 m |
| Panel Width | 2.5 m |
| Mesh Type | Double Wire Welded Mesh |
| Wire Configuration | Confirmed According to Specification |
| Surface Treatment | Galvanized + Powder Coated |
| Color | RAL 7016 Grey |
| Posts | Matching Steel Posts |
| Gates | Pedestrian and Vehicle Gates |
Preliminary Panel Quantity
Using a nominal panel width of 2.5 meters:
500 ÷ 2.5 = 200 nominal panel positions
The final quantity should account for gate openings, corners, changes in direction and installation allowances.
Post spacing, foundation requirements and wire dimensions must be confirmed before manufacturing.
This is an illustrative project scenario, not a completed Bendin customer installation.
10. Installation Considerations
A typical installation process includes:
- Measure the fence line and identify corners and gates.
- Prepare post locations and foundations.
- Install posts according to the approved layout.
- Attach panels using the specified connection system.
- Align adjacent panels and inspect the joints.
- Install matching gates and accessories.
- Check panel alignment, post stability, fixings and coating condition.
The installation method depends on the post system, ground conditions, panel dimensions and project requirements.
11. Quality Control
Quality inspection may include:
- Wire diameter
- Mesh opening
- Panel dimensions
- Horizontal wire arrangement
- Weld quality
- Post dimensions
- Connection compatibility
- Surface coating
- Packaging
For projects requiring third-party inspection or specific performance criteria, the test methods and acceptance requirements should be agreed before production.
12. Bendin Custom Double Wire Fence Solutions
Bendin supports customized double wire fencing for distributors, contractors and project owners.
Customization can include:
- Wire diameter
- Mesh opening
- Panel height and width
- Horizontal and vertical wire configuration
- Post type and dimensions
- Connection accessories
- Surface treatment
- Powder-coating color
- Pedestrian and vehicle gates
- Packaging and OEM requirements
Customers can provide drawings, quantities, site dimensions and technical specifications for review before ordering.
13. Frequently Asked Questions
What is a double wire fence?
It is a welded mesh fence using paired horizontal wires combined with vertical wires to create a reinforced panel structure.
Is double wire fence stronger than standard welded mesh?
For comparable configurations, paired horizontal wires can increase panel rigidity. Actual performance depends on the wire dimensions, mesh opening, welding quality, post spacing, connections and foundations.
What does 6/5/6 mm mean?
It commonly indicates two 6 mm horizontal wires and 5 mm vertical wires. The exact notation should be confirmed with the supplier.
Can double wire fence be powder coated?
Yes. Galvanized and powder-coated configurations can be discussed according to the product design and project requirements.
Can Bendin provide matching gates?
Compatible pedestrian and vehicle gates can be discussed according to the fence design and project requirements.
Is double wire fence suitable for high-security facilities?
It can be suitable for some perimeter applications, but high-security projects may require a dedicated anti-climb or security fencing system. The correct selection depends on the site’s risk assessment.
14. Request a Double Wire Fence Quotation
Double wire fencing provides a practical combination of reinforced horizontal wires, welded mesh construction, visibility and modular installation.
The right configuration depends on wire diameter, mesh opening, panel dimensions, posts, connections, surface treatment and site conditions.
Bendin supplies customizable double wire fence systems for residential, municipal, commercial and selected industrial projects.
For a quotation, provide:
- Fence height
- Panel width
- Wire configuration
- Mesh opening
- Post type
- Surface treatment
- Gate requirements
- Quantity
- Project location and destination
Bendin can review your requirements and discuss a suitable double wire fence configuration for your project.
