BRC Roll Top Fence: Structure, Specifications and Applications
BRC roll top fencing is a welded mesh fencing system designed to combine perimeter protection, structural rigidity and a practical edge profile. It is commonly considered for residential communities, schools, parks, commercial properties, industrial facilities and selected infrastructure projects.
Unlike conventional flat welded mesh fencing, a BRC roll top fence typically features rolled or folded wire sections along the top and bottom edges. These sections help create a smoother edge profile and contribute to the panel’s structural geometry.
BenDin (Hebei Bendin Industrial Technology Co., Ltd.) supplies customizable welded mesh fencing systems for international customers, with options for panel dimensions, wire diameter, mesh opening, post configuration, surface treatment and color.
This guide explains the structure, specifications, surface treatments, applications and purchasing considerations for BRC roll top fencing.
1. What Is BRC Roll Top Fence?

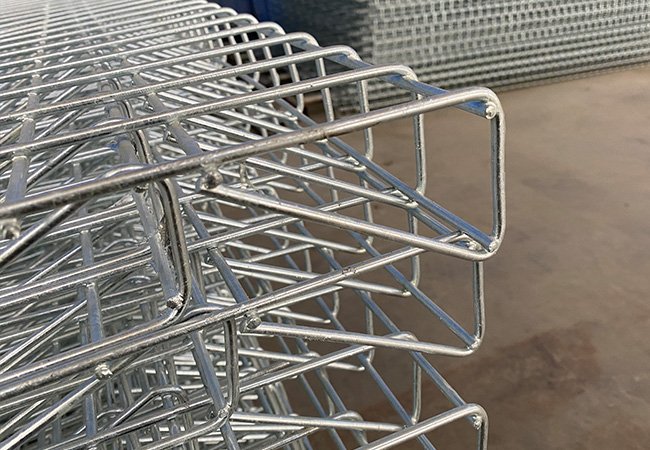

BRC roll top fence is a welded steel mesh fencing system characterized by reinforced rolled edges, commonly formed along the top and bottom of the panel.
The main components typically include:
- Welded steel mesh panel
- Rolled or folded panel edges
- Supporting steel posts
- Panel connection clips
- Bolts and fixing accessories
- Optional pedestrian or vehicle gates
The welded mesh provides a regular grid structure, while the rolled edges contribute to the panel’s shape and provide a finished edge profile.
The actual design varies between manufacturers and markets. Buyers should confirm the cross-sectional profile and panel construction using technical drawings or product samples.
2. Main Advantages of BRC Roll Top Fence
Reinforced Panel Structure
Resistance welding joins the horizontal and vertical wires at their intersections, creating a rigid mesh panel.
The panel’s actual strength depends on wire diameter, mesh dimensions, weld quality, rolled-edge geometry, post spacing and installation details.
Smooth Rolled Edges
The rolled top and bottom edges provide a more finished profile than exposed cut-wire edges.
This design is commonly selected for residential, educational, recreational and public-area fencing where appearance and everyday use are important.
Good Visibility
The open welded mesh structure allows people to see through the fence while maintaining a clearly defined boundary.
This makes BRC roll top fencing suitable for parks, schools, sports facilities and residential communities.
Modular Installation

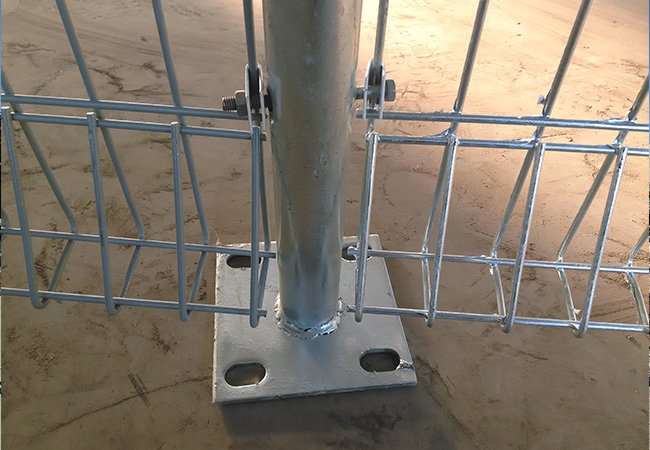

Panels can be attached to supporting posts using suitable clips or fasteners.
Modular construction simplifies layout planning and allows individual panels to be replaced when necessary.
Flexible Appearance
Different mesh dimensions, panel heights, post styles and colors can be selected to match the project’s architectural design.
3. Typical BRC Roll Top Fence Specifications
BenDin can discuss customized configurations according to project requirements.
| Parameter | Typical Options |
|---|---|
| Product Type | BRC Roll Top Fence |
| Material | Low-Carbon Steel Wire |
| Mesh Opening | 50 × 200 mm / 50 × 150 mm / Customized |
| Wire Diameter | Approx. 4.0–6.0 mm, subject to design |
| Panel Height | Approx. 1.0–2.4 m / Customized |
| Panel Width | Approx. 2.0–3.0 m / Customized |
| Edge Design | Rolled / Folded Edge |
| Post Type | Square / Rectangular / Customized |
| Surface Treatment | Galvanized / Powder Coated |
| Common Colors | RAL 6005 / RAL 7016 / RAL 9005 |
| Connection | Clips / Bolted Fixings |
| Gate Options | Single Swing / Double Swing |
| Customization | Dimensions / Mesh / Wire / Posts / Color |
These are indicative configuration options rather than a fixed specification for every product. Final dimensions, wire diameter and connection details should be confirmed against the actual product design.
4. Surface Treatment and Corrosion Protection
Outdoor fencing is exposed to moisture, rain, sunlight and temperature changes. Appropriate surface treatment helps protect steel components from corrosion.
Electro-Galvanized Finish
Electro-galvanizing applies a zinc coating to the steel surface.
It may be suitable for selected applications where the specified coating performance meets the project’s requirements.
Hot-Dip Galvanized Finish
Hot-dip galvanizing provides a zinc coating that helps protect fabricated steel components from corrosion.
For applicable components, the coating requirements and inspection can reference ISO 1461 where appropriate.
Galvanized Plus Powder Coating
A duplex coating system combines zinc protection with a decorative powder-coated finish.
It is commonly considered for residential, commercial and municipal projects where both corrosion protection and appearance are important.
The appropriate coating system should be selected according to environmental exposure, required service life and maintenance conditions.
5. BRC Roll Top Fence Applications
Residential Communities
BRC roll top fencing can be used around residential boundaries, shared gardens, walkways and community facilities.
Its rolled-edge profile and open mesh design provide a practical combination of boundary separation and visibility.
Schools and Educational Facilities
The smooth panel edges and modular construction make BRC roll top fencing an option for selected school boundaries, playgrounds and campus areas.
The final fence height, openings, gate configuration and other safety features should reflect the facility’s requirements.
Parks and Landscape Projects
BRC roll top fencing is suitable for parks, gardens, pedestrian areas and public landscape projects where a consistent appearance is desirable.
Green, black and grey finishes can be selected to coordinate with surrounding buildings and landscaping.
Commercial Properties
Applications include:
- Office compounds
- Retail developments
- Parking areas
- Business parks
- Commercial property boundaries
Different post and gate configurations can be used to suit the site’s layout.
Industrial Facilities
BRC roll top fencing can provide general perimeter separation around industrial and commercial properties.
Where higher security, impact resistance or machinery protection is required, the system should be evaluated against the specific engineering and security requirements. A standard roll top fence should not automatically be treated as a high-security anti-climb system.
6. BRC Roll Top Fence vs. Flat Welded Mesh Fence
Both products use welded steel wire, but their edge profiles differ.
| Feature | BRC Roll Top Fence | Flat Welded Mesh Fence |
|---|---|---|
| Panel Edge | Rolled or folded edges | Usually flat panel edges |
| Appearance | Finished rolled-edge profile | Straight, flat profile |
| Structure | Welded mesh with edge forming | Welded mesh panel |
| Visibility | Good | Good |
| Common Applications | Schools, parks, residential and public areas | Industrial, residential and general perimeter fencing |
| Installation | Posts and fixing accessories | Posts and fixing accessories |
| Customization | Available | Available |
The appropriate option depends on the intended application, appearance requirements, panel specifications and budget.
7. How to Select the Right BRC Roll Top Fence
Before ordering, buyers should confirm several key requirements.
Fence Height
The required height depends on the intended application, boundary conditions and applicable local requirements.
Mesh Opening
Mesh opening affects visibility, containment and the size of objects that can pass through the fence.
Wire Diameter
Wire diameter influences the individual wire’s strength and stiffness. The finished panel’s performance also depends on mesh geometry, weld quality and supporting structure.
Post Configuration
Post dimensions, spacing, connection details and foundations should be selected according to the fence design and site conditions.
Surface Treatment
The coating should be suitable for the local environment, particularly in coastal or highly humid locations.
Gate Requirements
Pedestrian and vehicle access should be incorporated into the layout before the panel quantity is finalized.
8. Illustrative Project Example: School Perimeter Fence
A school project requires approximately 300 meters of welded mesh fencing around a landscaped outdoor area.
A preliminary configuration could include:
| Item | Example Requirement |
|---|---|
| Application | School Boundary |
| Fence Length | 300 m |
| Fence Height | 1.8 m |
| Panel Width | 2.5 m |
| Mesh Type | BRC Roll Top Welded Mesh |
| Surface Treatment | Galvanized + Powder Coated |
| Color | RAL 6005 Green |
| Posts | Matching Steel Posts |
| Access | Pedestrian Gates |
Preliminary Panel Quantity
Using a nominal panel width of 2.5 meters:
300 ÷ 2.5 = 120 nominal panel positions
The final quantity must account for gate openings, corners, changes in direction, site dimensions and installation allowances.
The actual mesh opening, wire diameter, post spacing and mounting details should be confirmed before manufacturing.
This is an illustrative project scenario, not a completed BenDin customer installation.
9. Installation Considerations
A typical installation process includes:
- Measure the fence line and confirm gate positions.
- Prepare post locations and foundations.
- Install posts according to the approved layout.
- Attach the mesh panels using the specified fixing system.
- Align adjacent panels and check connections.
- Install gates and accessories.
- Inspect the finished fence for alignment and coating damage.
The installation method depends on the post system, ground conditions, panel dimensions and project requirements.
10. Quality Control
Quality inspection for BRC roll top fencing may include:
- Wire diameter measurement
- Mesh opening inspection
- Panel dimension checks
- Welding quality inspection
- Rolled-edge consistency
- Post dimension inspection
- Surface coating inspection
- Packaging verification
For projects requiring specific testing or third-party inspection, the relevant test methods and acceptance criteria should be agreed before production.
11. BenDin Custom BRC Roll Top Fence Solutions
BenDin supports customized welded mesh fencing configurations for distributors, contractors and project owners.
Customization may include:
- Panel height and width
- Wire diameter
- Mesh opening
- Rolled-edge configuration
- Post dimensions
- Connection accessories
- Surface treatment
- Powder-coating color
- Pedestrian gates
- Vehicle gates
- Packaging requirements
Customers can provide drawings, reference samples, project dimensions or technical specifications for review before ordering.
12. Frequently Asked Questions
What is BRC roll top fencing used for?
It is commonly used for residential communities, schools, parks, commercial properties and selected industrial perimeter applications.
What makes BRC roll top fencing different from flat welded mesh?
The main difference is the rolled or folded edge design, which gives the panel a distinctive profile and finished edge treatment.
Can BRC roll top fence be galvanized?
Yes. Galvanized and galvanized-plus-powder-coated configurations can be discussed according to the product design and project requirements.
Can BenDin customize panel height and color?
Yes. Panel dimensions, wire specifications, posts and colors can be customized according to confirmed manufacturing capabilities and project requirements.
Is BRC roll top fence suitable for high-security facilities?
It may be suitable for general perimeter applications, but high-security sites may require a different fence system with specific anti-climb, anti-cut and structural performance. The final selection should follow the site’s security assessment.
13. Request a BRC Roll Top Fence Quotation
BRC roll top fencing provides a practical combination of welded mesh construction, a finished edge profile, visibility and modular installation.
The correct system depends on the panel design, wire specification, post configuration, surface treatment and intended application.
BenDin supplies customizable welded mesh fencing systems for residential, educational, commercial, municipal and selected industrial projects.
For a quotation, provide:
- Application
- Fence height
- Panel width
- Mesh opening
- Wire diameter
- Surface treatment
- Post type
- Gate requirements
- Quantity
- Delivery destination
BenDin can review your requirements and discuss a suitable BRC roll top fence configuration for your project.
