358 Fence Post Options: Square, I-Beam and Rectangular Posts

A 358 security fence is only as reliable as the complete fencing system supporting it. While the welded mesh panel provides the primary anti-climb and anti-cut barrier, the post profile, connection method, foundation and installation configuration all influence the stability of the finished perimeter.

For high-security applications such as prisons, airports, military facilities, energy infrastructure and industrial sites, selecting the right 358 fence post is therefore an important part of the project design.

Bendin, a professional fencing manufacturer based in Anping, Hebei, China, supplies 358 security fence systems compatible with different post configurations, including square posts, I-beam posts and rectangular posts.

This guide explains the differences between the three post types, their typical applications, connection methods, specifications and the factors that should be considered before ordering a 358 fence system.

What Is a 358 Security Fence?

358 fence is a high-security welded mesh fencing system named after its traditional imperial dimensions:

• 3 inches × 0.5 inch mesh opening
• Approximately 76.2 × 12.7 mm
• Commonly manufactured with 8-gauge wire, depending on the specification

The narrow 12.7 mm opening makes it difficult for a person to obtain a secure foothold or handhold. It also makes the mesh difficult to penetrate using conventional hand tools.

Unlike conventional welded wire fencing with larger openings, 358 security fence is designed specifically for applications where climbing resistance, visibility and perimeter security are important.

Typical applications include:

• Prisons and correctional facilities
• Airports
• Military facilities
• Power stations
• Data centers
• Industrial infrastructure
• Ports
• Government facilities
• High-security warehouses
• Critical infrastructure

However, the mesh panel is only one component of the system. The supporting post configuration should be selected according to the required security level, fence height, wind conditions, foundation and installation method.

Three 358 Fence Post Options

Bendin’s 358 fence system can be configured with three commonly used post profiles:

1. Square Post
2. I-Beam Post
3. Rectangular Post

Each profile has different characteristics.

The best choice depends on the engineering requirements of the project rather than simply selecting the strongest-looking post.

1. Square Post for 358 Security Fence

Square posts are one of the most straightforward configurations for 358 welded mesh fencing.

The symmetrical cross-section provides a clean appearance and allows the post to be positioned consistently along the fence line.

Typical Advantages

• Simple geometric structure
• Clean and modern appearance
• Straightforward panel connection
• Easy alignment during installation
• Suitable for many standard perimeter projects
• Convenient for customized dimensions

Square posts are commonly considered for industrial facilities, commercial compounds, utility sites and other projects where a balance between security, appearance and installation efficiency is required.

Typical Configuration

A square-post 358 fence system may include:

• 358 welded mesh panels
• Square steel posts
• Connection clips
• Bolts and nuts
• Base plates where required
• Security fixings
• Gates and access-control components

The final post dimensions should be determined according to the fence height, loading requirements and engineering design.

2. I-Beam Post for High-Security Applications

I-beam posts provide a different structural profile and are particularly useful when higher structural rigidity is required.

The shape of an I-beam distributes material around the main structural axis and can provide an efficient solution for demanding perimeter applications.

I-beam configurations may be considered for:

• Correctional facilities
• Military installations
• Airport boundaries
• Critical infrastructure
• High-security industrial sites
• Projects with increased impact or wind requirements

Key Characteristics

An I-beam 358 fence system can offer:

• High structural rigidity
• Robust panel support
• Strong connection points
• Suitable configuration for tall security fencing
• Compatibility with customized anti-climb systems

For high-security projects, the post should be evaluated together with the foundation, panel dimensions, gate structure and connection hardware.

A heavy post alone does not automatically make an entire fence system high-security.

3. Rectangular Post for 358 Fence

Rectangular posts provide another practical configuration for 358 security fencing.

Compared with square posts, rectangular profiles allow the width and depth of the post to be configured differently, which can be useful when the fence design has specific structural or installation requirements.

Typical applications include:

• Industrial compounds
• Transportation infrastructure
• Airports
• Warehouses
• Energy facilities
• Large perimeter projects

Rectangular posts can also be integrated into customized fencing layouts where the post profile needs to match existing structural components.

Square vs. I-Beam vs. Rectangular 358 Fence Posts

Choosing between the three profiles should be based on the project rather than on the post shape alone.

The table is intended as a general comparison. Actual structural performance depends on steel grade, post dimensions, fence height, spacing, foundation and site conditions.

358 Fence Panel Specifications

Bendin can manufacture 358 security fence panels according to project requirements.

Typical specifications include:

These are representative configurations. Exact wire diameter, panel dimensions, coating system and post size should be confirmed against the customer’s drawings and project specifications.

Why the Post Matters in a 358 Fence System

A common mistake in perimeter fencing projects is to focus exclusively on the mesh opening.

In reality, a security fence consists of multiple interacting components:

Mesh Panel + Post + Connection + Foundation + Gate + Access Control

If one component is incorrectly selected, the performance of the entire system may be affected.

For example, a high-security 358 mesh panel installed on an undersized or poorly anchored post may not provide the expected level of perimeter protection.

Therefore, Bendin recommends evaluating the complete system before production.

Connection Methods for 358 Fence Panels

The connection between the mesh panel and post should provide sufficient rigidity while also making unauthorized removal more difficult.

Common configurations include:

Security Bolted Connections

Bolted connections can provide a robust mechanical connection between the panel and post.

For high-security applications, security nuts or anti-tamper fasteners can be considered.

Specialized Connection Clips

Dedicated clips allow 358 panels to be attached to different post profiles.

This approach is particularly useful when the same 358 panel specification needs to be supplied with different post systems.

Customized Connection Systems

For large infrastructure projects, Bendin can develop connection configurations according to:

• Post profile
• Panel thickness
• Fence height
• Security requirements
• Gate configuration
• Site installation conditions

Anti-Climb Characteristics of 358 Fence

The defining feature of 358 fence is its narrow mesh opening.

A conventional fence with a large mesh opening may provide enough space for fingers or feet to gain a foothold.

The approximately 12.7 mm narrow dimension of 358 mesh significantly reduces this possibility.

At the same time, the open welded structure maintains visibility across the perimeter.

This combination makes 358 fence particularly suitable where the project requires:

High security + anti-climb characteristics + visibility

It can also be combined with additional security equipment such as:

• Intrusion detection
• CCTV
• Security lighting
• Razor wire
• Detection cables
• Access-control gates

The additional security equipment should be selected according to the site’s security assessment.

Corrosion Protection for 358 Fence Posts and Panels

Outdoor security fencing is exposed to rain, humidity, UV radiation, temperature changes and, in some locations, salt-laden air.

Bendin offers several surface-treatment options.

Galvanized Finish

A zinc coating provides the steel with a protective barrier against atmospheric corrosion.

This configuration is commonly used for general outdoor fencing applications.

Powder Coating

Powder coating provides an additional protective and decorative layer.

Common colors include:

• RAL 6005 Green
• RAL 7016 Anthracite Grey
• RAL 9005 Black

Duplex Protection

For projects requiring additional corrosion resistance and a particular appearance, galvanized steel combined with powder coating can be specified.

The coating system should be selected according to the environmental exposure category and required service life.

358 Fence Installation Considerations

The installation method depends on the post configuration and project conditions.

A typical installation sequence includes:

Step 1 — Site Survey

Confirm:

• Fence line
• Ground levels
• Corners
• Gate positions
• Existing structures
• Underground utilities

Step 2 — Foundation Preparation

Post foundations should be designed according to the fence height, soil conditions, wind loading and applicable engineering requirements.

Step 3 — Post Installation

Posts are positioned according to the specified spacing and aligned vertically.

Step 4 — Panel Installation

358 panels are attached to the posts using the specified connection system.

Step 5 — Security Fixings

Security fasteners and anti-tamper components are installed where required.

Step 6 — Gate Installation

Pedestrian and vehicle gates are aligned with the fence system.

Step 7 — Final Inspection

The completed fence should be checked for:

• Panel alignment
• Post verticality
• Connection tightness
• Gate operation
• Coating damage
• Ground clearance
• Security components

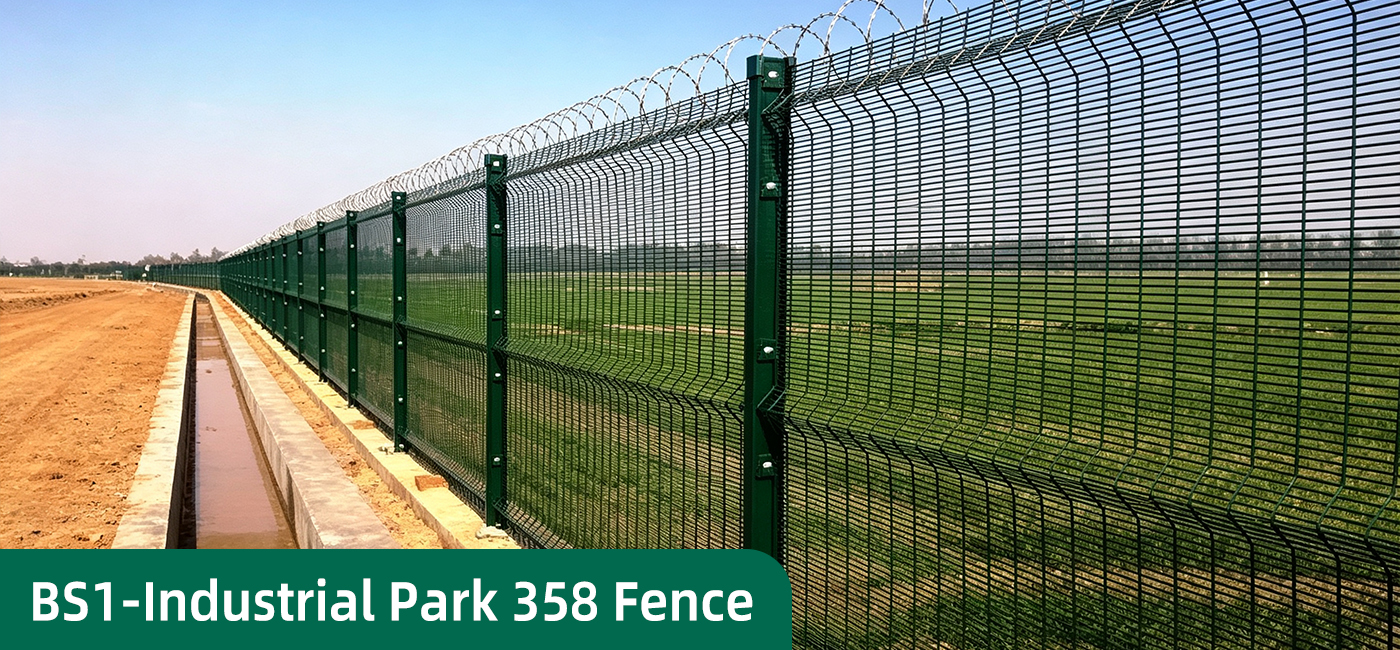

Case Example: 358 Fence for an Industrial Security Perimeter

An industrial facility required a perimeter system that could provide strong anti-climb protection while maintaining visibility for CCTV monitoring.

The project selected 358 welded mesh panels with rectangular steel posts.

Project Configuration

The narrow mesh helped reduce climbing opportunities while the open structure maintained visibility for the site’s surveillance system.

The modular construction also allowed damaged components to be replaced individually rather than requiring replacement of an entire perimeter section.

Case Example: 358 Fence for an Airport Perimeter

Airport perimeter fencing requires careful coordination between security, visibility, access control and site conditions.

For an airport-related application, a 358 fence configuration can be combined with:

• High-security welded mesh
• Reinforced posts
• Security gates
• Intrusion detection
• CCTV
• Security lighting
• Anti-climb topping where specified

The exact configuration should be determined through the airport’s security requirements and applicable aviation regulations.

For projects close to coastal environments, the corrosion-protection system should also be selected according to the local exposure conditions.

Case Example: High-Security Facility

Correctional and other high-security facilities typically require more than a standard perimeter fence.

A complete solution may include:

358 mesh panel → reinforced post → security fixing → anti-climb topping → controlled gate → monitoring system

For such projects, Bendin can manufacture the fencing components according to project drawings and coordinate the mesh, post and gate specifications.

The final security level should always be verified against the applicable project standard and site security assessment.

How to Choose Between the Three Post Types

For most projects, the following decision framework is useful.

Choose Square Posts When:

• A clean appearance is important
• The project uses standard panel dimensions
• Straightforward installation is preferred
• The structural requirements are moderate to high

Choose I-Beam Posts When:

• Higher structural rigidity is required
• The fence is relatively tall
• The site has demanding loading conditions
• The project requires a heavy-duty structural configuration

Choose Rectangular Posts When:

• A specific post width/depth is required
• The fence must integrate with other structures
• A customized structural configuration is needed
• The project uses a non-standard layout

The final selection should be confirmed through engineering calculations when the fence is exposed to significant wind, impact or other loads.

Bendin 358 Fence Customization

Bendin provides customized 358 fence systems for distributors, contractors and engineering projects.

Customization can include:

• Mesh dimensions
• Wire diameter
• Panel height
• Panel width
• Post profile
• Post dimensions
• Post spacing
• Connection clips
• Security fasteners
• Surface treatment
• Powder-coating color
• Gate design
• Access-control integration
• Packaging
• OEM/private-label requirements

Customers can provide drawings, specifications, BOQs or project photographs for technical evaluation.

For large projects, Bendin can coordinate the fence panels, posts, gates and accessories as a complete system rather than supplying individual components separately.

Frequently Asked Questions

What is a 358 fence?

358 fence is a high-security welded mesh fence typically using a narrow approximately 76.2 × 12.7 mm mesh opening. The narrow opening makes climbing and cutting more difficult than with conventional larger-mesh fencing.

What posts can be used with 358 fence?

Common configurations include square posts, I-beam posts and rectangular posts. The appropriate profile depends on fence height, structural requirements and project conditions.

Which 358 fence post is strongest?

There is no universal answer. Structural performance depends on the complete post design, including steel grade, dimensions, wall thickness, spacing, foundation and loading conditions.

Can 358 fence posts be customized?

Yes. Post profile, dimensions, spacing, connection method, coating and accessories can be customized according to project requirements.

Can 358 fence be used for prisons?

Yes. 358 security fencing is commonly considered for correctional and other high-security perimeter applications because of its narrow mesh opening and welded construction. The final system must comply with the specific security requirements of the facility.

Can 358 fence be used around airports?

Yes. 358 fencing can be used for airport perimeter and restricted-area applications, subject to the airport’s security specification and applicable aviation requirements.

Can 358 fence be powder coated?

Yes. Galvanized steel can be combined with powder coating when the project requires additional corrosion protection and a specific color or appearance.

Bendin 358 Fence: One Mesh System, Multiple Post Configurations

The effectiveness of a 358 security fence depends on the complete system rather than the mesh panel alone.

By supporting square, I-beam and rectangular post configurations, Bendin provides greater flexibility for contractors, distributors and project owners working with different security requirements, structural conditions and installation preferences.

From the 76.2 × 12.7 mm welded mesh panel to posts, connection hardware, gates and surface treatment, each component can be configured according to the project’s requirements.

For a 358 fence project, provide Bendin with your required fence height, total perimeter length, post preference, site conditions and gate requirements. Our technical team can then recommend a suitable configuration and prepare a customized quotation.
